Product Description

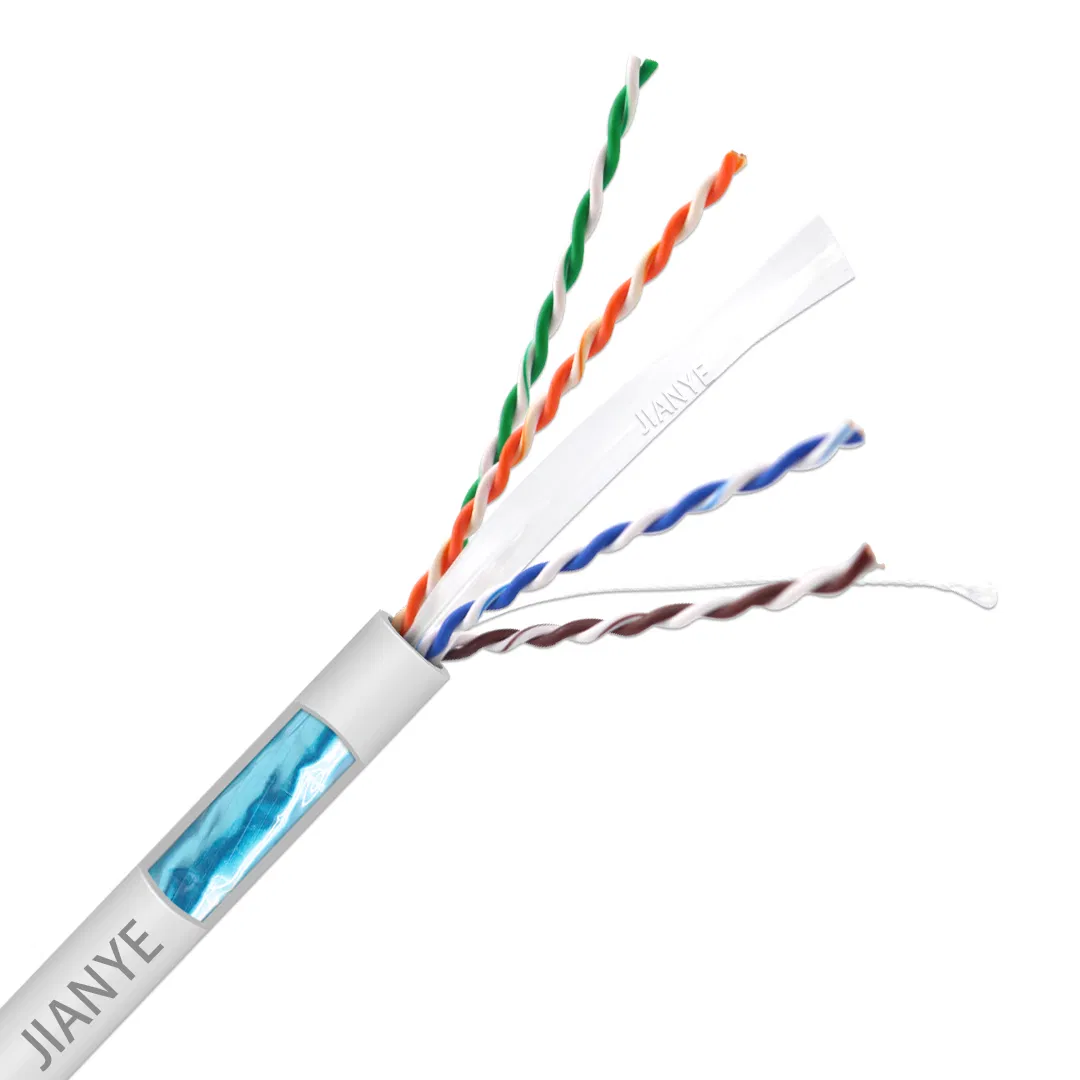

305m CAT6 Ethernet Computer Data Cat 6 Cable LAN Cable Price for Network

UTP Cat6 PVC 23 AWG Cable
Feature and Function
• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
• Compliant with RoHS 2.0.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
• conductor with less resistance, and better electrical properties and transmission performance

Category	Cat.6
Sheath printing	xxxxxx 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference standard	ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0

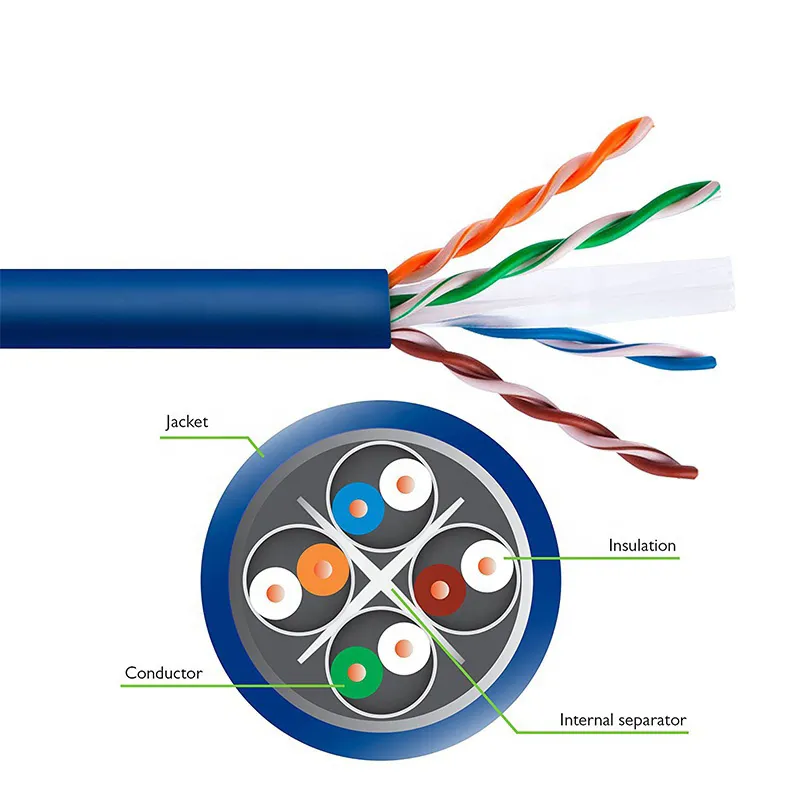

Conductor	Material	Solid-Bare Copper (99.95%)/CCA/CCAG
Conductor	Diameter	0.570 ± 0.005 mm, 24 AWG
Insulation	Material	HDPE
Insulation	Diameter	1.03 ± 0.04 mm
Sheath	Thickness	0.65 ± 0.05 mm
	Diameter	Diameter 6.40 ± 0.4 mm
	Material	PVC/PE/LSZH
	Color	According to your requirements
Rip-cord	YES
Separator	YES
Sheath physical properties	Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
	Aging period	100°C × 24h × 10d
	After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
	Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)	1.0-250.0 MHz impedance	100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz
	1.0-250.0 MHz delay skew	≤ 45 ns/100 m
	DC resistance	≤ 9.38Ω/100 m
	DC conductor resistance unbalance	≤ 5.0%

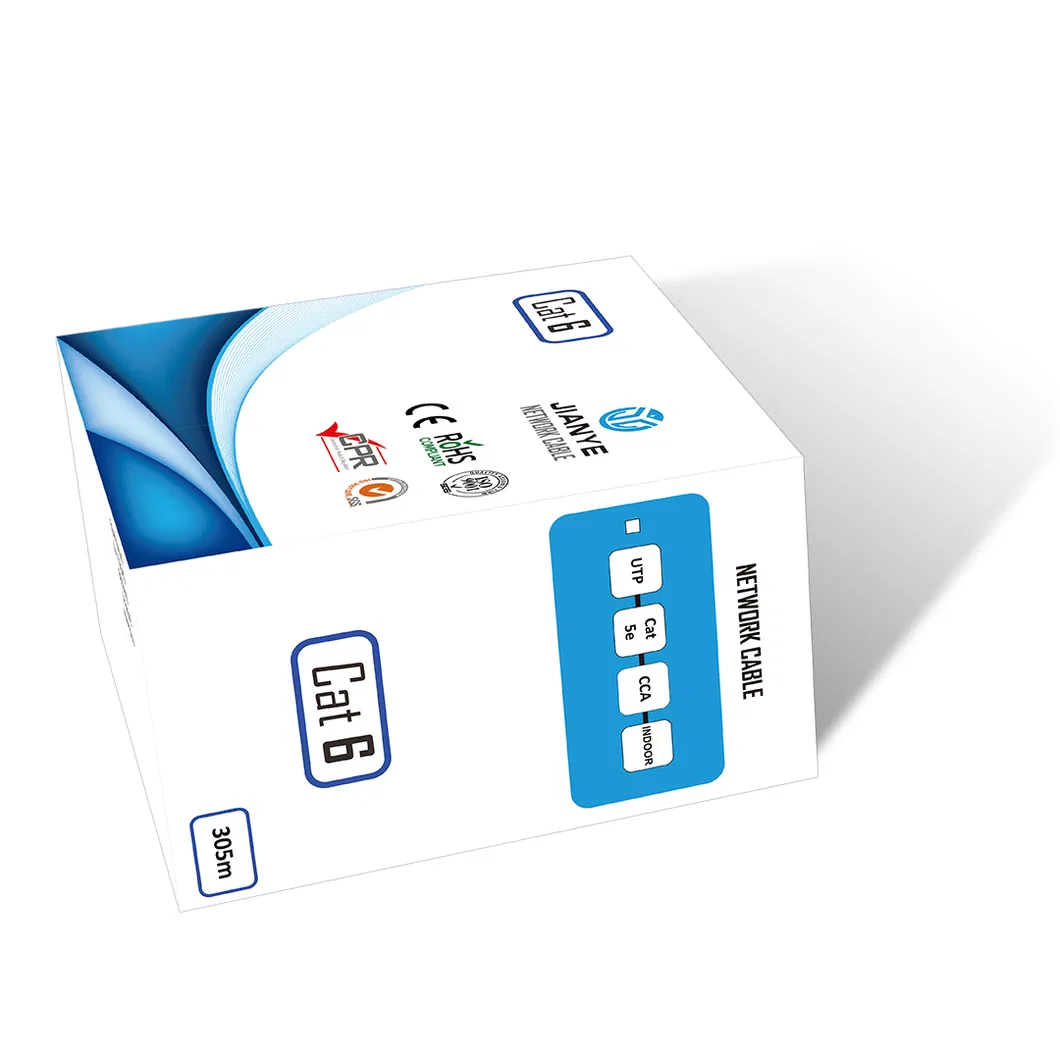

	Package dimension	380 mm (W) × 380 mm (H) × 240 mm (D)
	Weight	12.3 ± 0.5kg

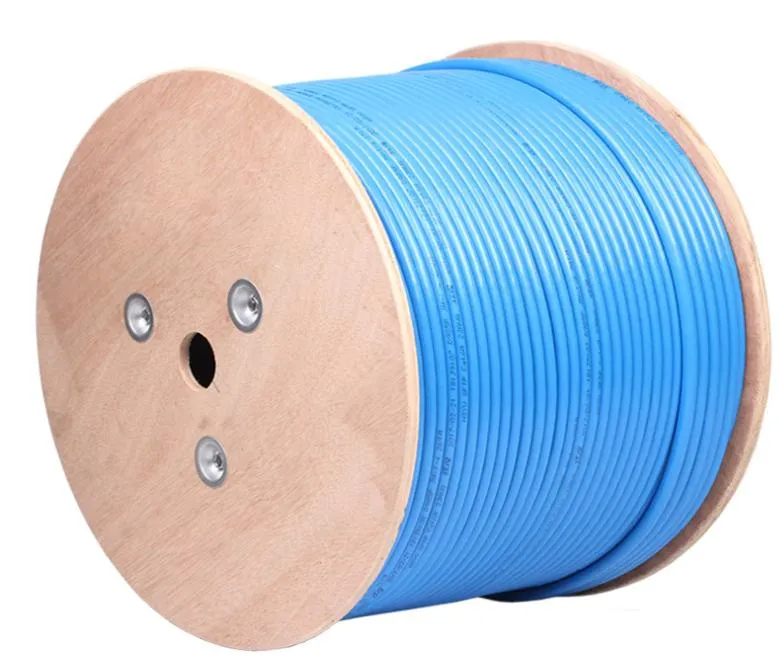

	Cable length	(305 ± 1.5) m
	Ambient temperature	-20°C to 75°C (-4°F to 167°F)
	Operating voltage	60 V
