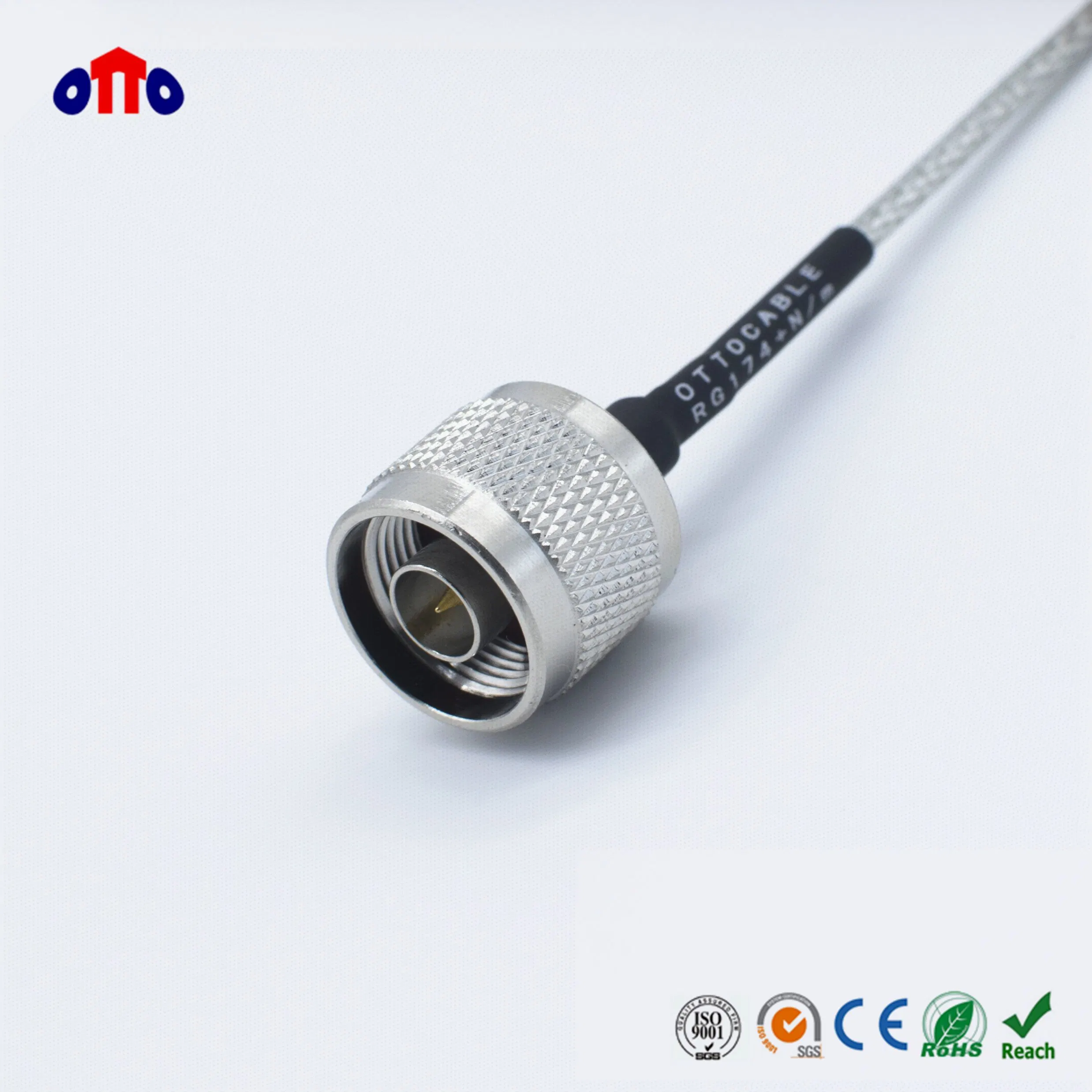

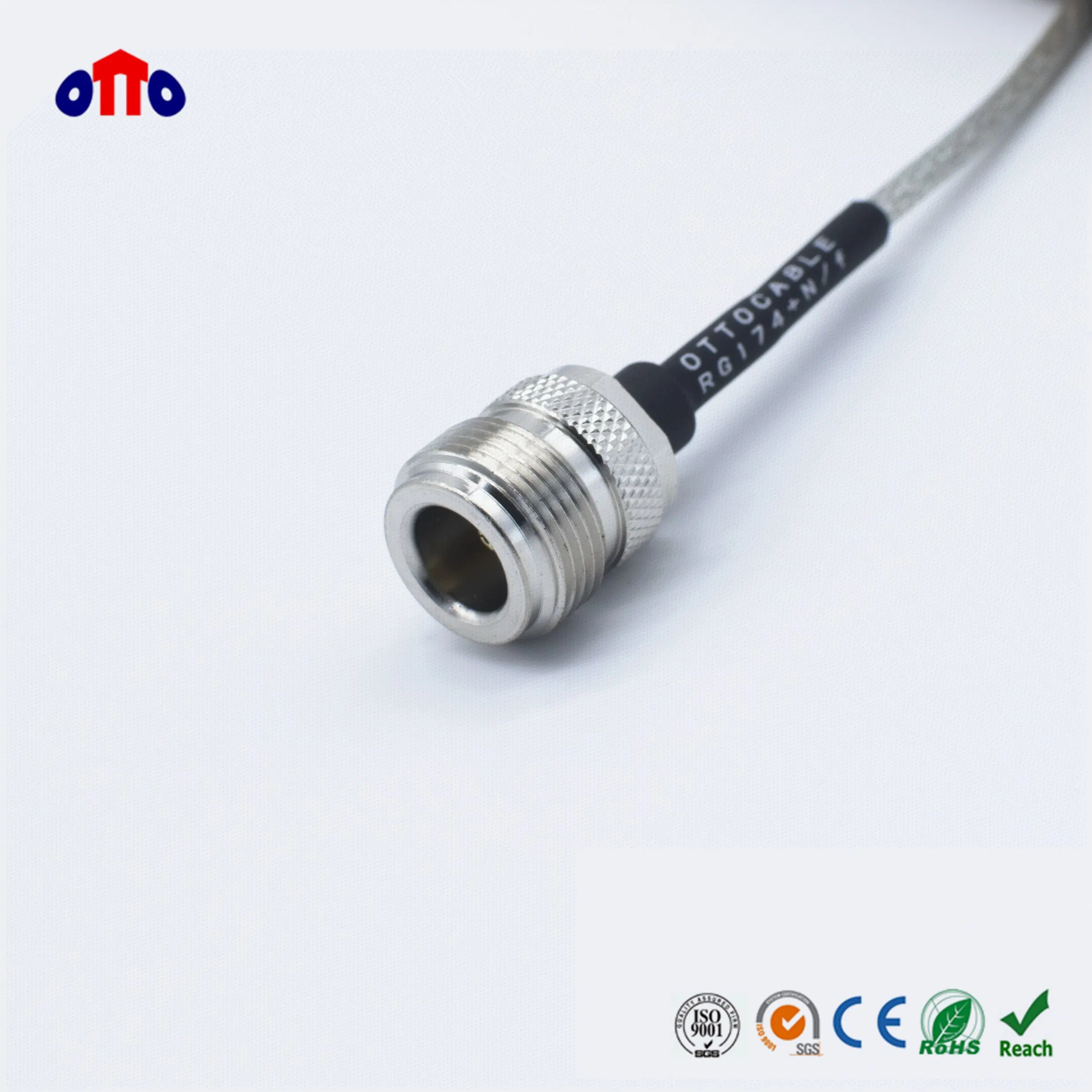

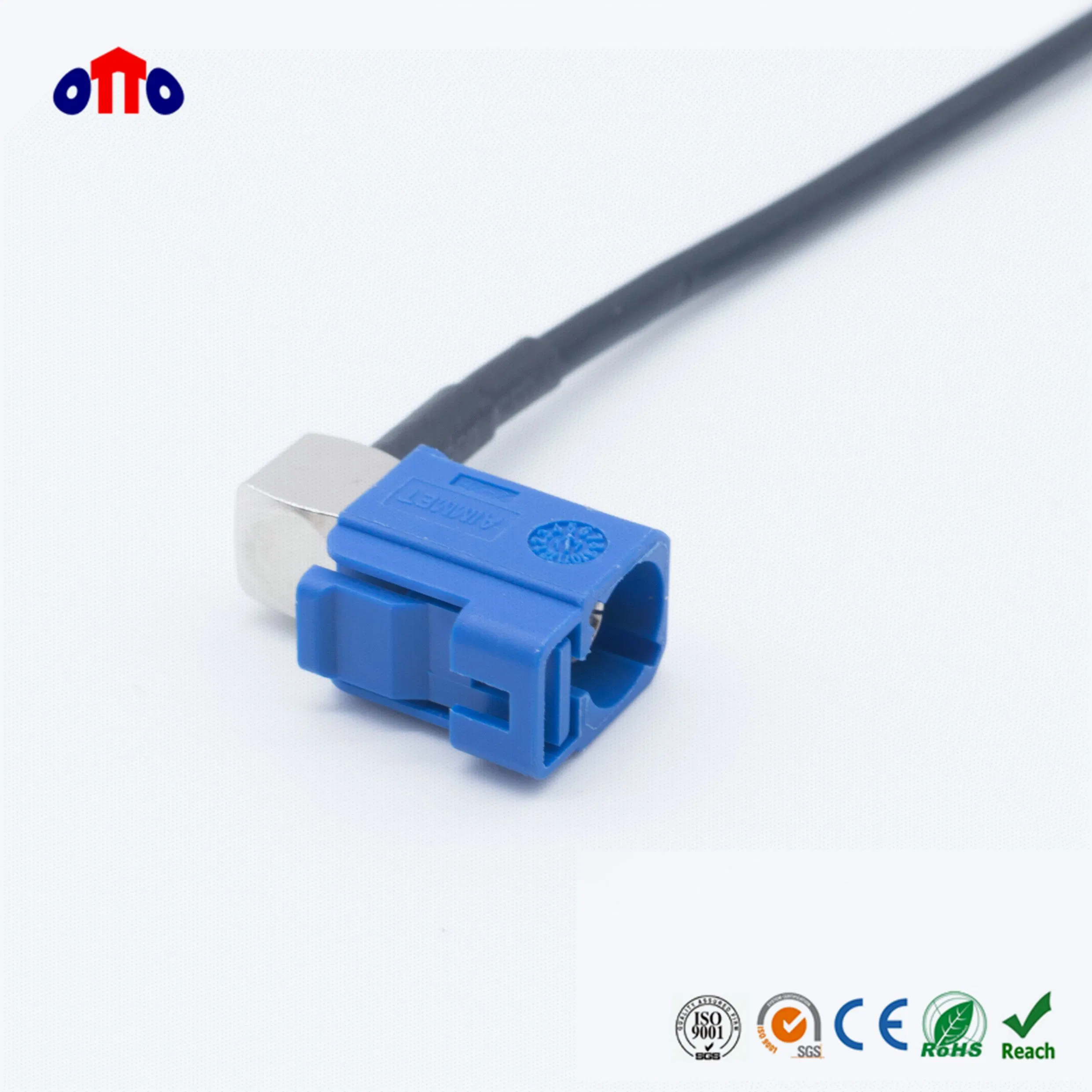

50 Ohm Coaxial Jumper Cable RG174 with SMA/ Fakra Connector
50 Ohm Coaxial Jumper Cable RG174 with SMA/Fakra ConnectorApplication: Car Antenna GPS, GSM Signal transmissionFeatures: 50 Ohm High temperature resistant upto 105ºC Good eletrical and welding performance provided by special insulation material. Smaller size, soft and handable Attenuation @......
Send Inquiry
Product Description

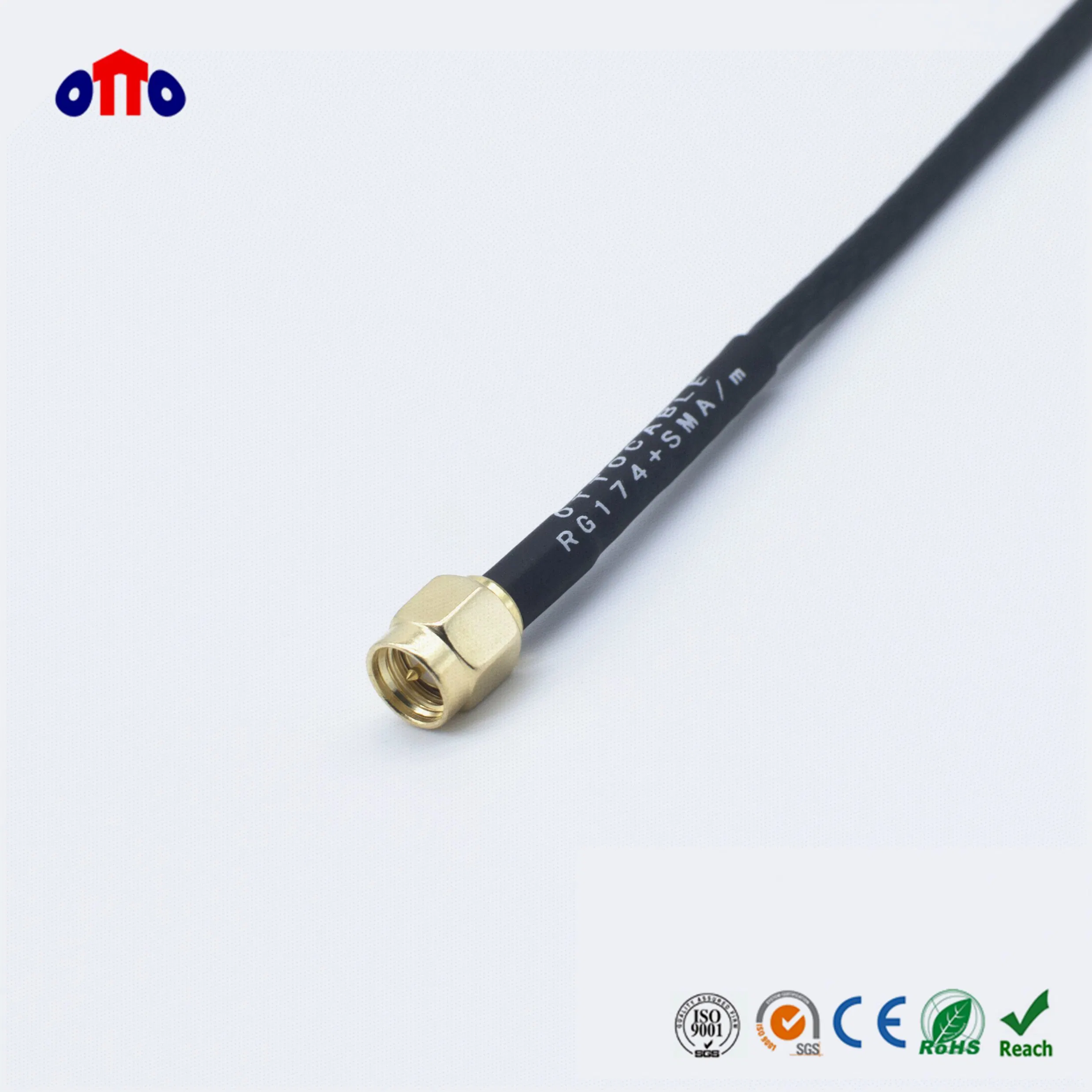

50 Ohm Coaxial Jumper Cable RG174 with SMA/Fakra Connector
Application:
• Car Antenna
• GPS, GSM
• Signal transmission
Features:
• 50 Ohm
• High temperature resistant upto 105ºC
• Good eletrical and welding performance provided by special insulation material.
• Smaller size, soft and handable
• Attenuation @1575 MHz: 1.1dB/M.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• SMA, SMB, FAKRA,BNC, MCX, ......
• Customized Cable length / jacket color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric Shield Jacket | Bare Copper / Tinned Copper Solid PE / XLPE Bare Copper or Tinned Copper Wire Braid PVC | 7*0.16 1.52 1.90 2.80 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Installation Temp(ºC) Operating Temp(ºC) | 50±3 101 66 20 -30 to +85 / 105 -30 to +85 / 105 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/m) |
| 400 600 860 1000 1575 | 0.62 0.72 0.90 1.00 1.10 |
