Product Description
Cable description
BC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
1) RG59 Coaxial Cable 75ohm Dual shield(standard)
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket
2) RG59 Coaxial Cable 75ohm Tri-shielded
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Al Foil+6.10±0.10mm PVC Jacket
3) RG59 Coaxial Cable 75ohm Quad Shield
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +6.70+0.10mm PVC Jacket

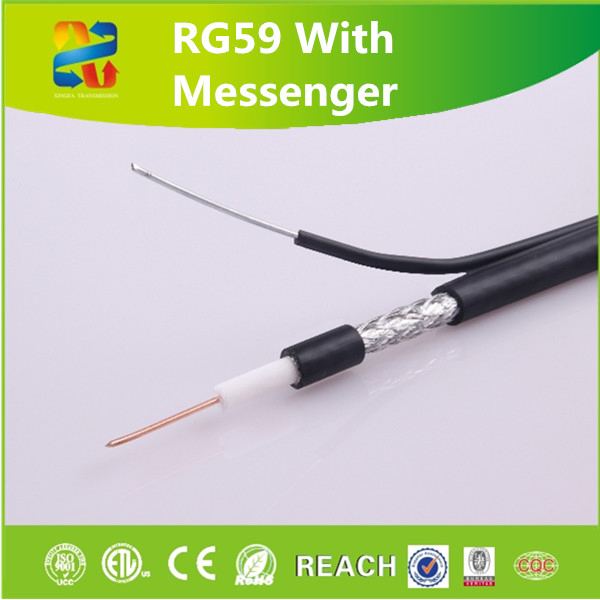

4) RG59 Coaxial Cable 75ohm With Messenger
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket+1.02mm Messenger
5) Customers'specifications are welcomed
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
Electrical characteristics:
Frequency (MHz) | Max. (dB/100 ft.) | Frequency (MHz) | Max. (dB/100 ft.) |
5 | 0.86 | 400 | 5.10 |
55 | 2.05 | 450 | 5.40 |
83 | 2.45 | 500 | 5.70 |
187 | 3.60 | 550 | 5.95 |
211 | 3.80 | 600 | 6.20 |
250 | 4.10 | 750 | 6.97 |
300 | 4.45 | 865 | 7.52 |
350 | 4.80 | 1000 | 8.12 |

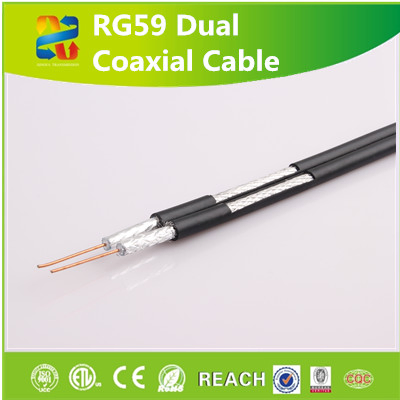

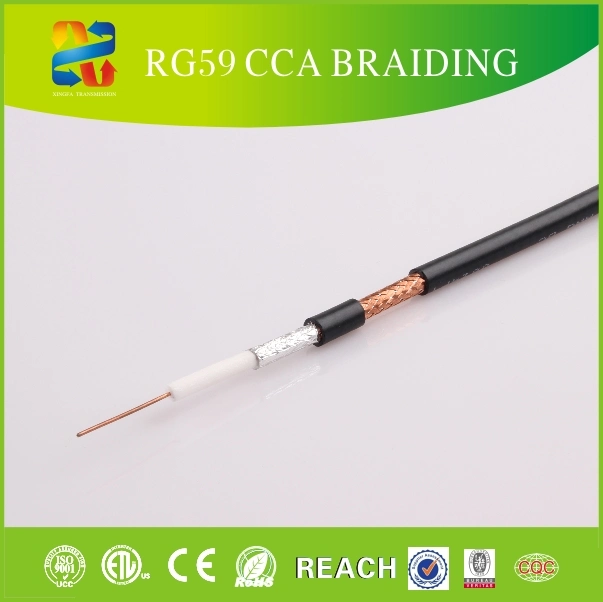

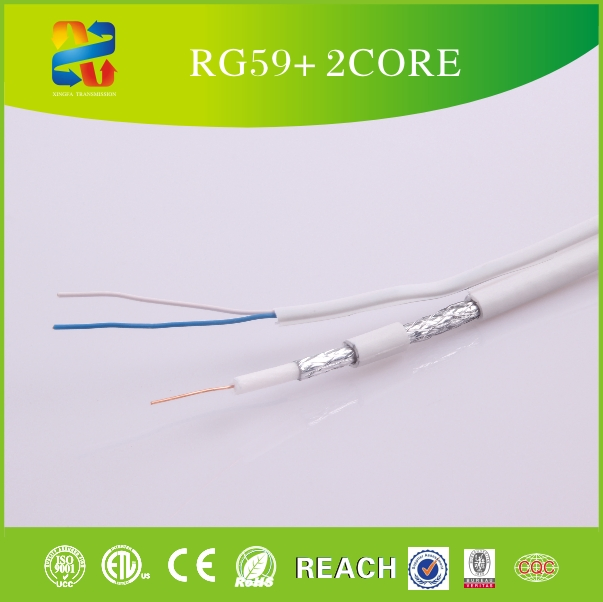

Cable photo
