RG6 Underground PVC Cable Coaxial with RoHS CE

75 ohm standard satellite Cable coaxial cable rg6 for CCTV/CATV system

Product description

BC:Bare Copper      CCS:Copper Clad Steel
TC:Tinned Copper   CCA:Copper Clad Aluminum
1) Center Conductor:BC,TC,CCA,CCS

2) Al-foil:Non-bonded Al-foil, Bonded Al-foil,Double bonded Al-foil,and double

non-bonded Al-foil are Available

3) Braiding Wire:Al,BC,TC,CCA,CCS Available

4) Braiding Wire Diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm Available

5) Braiding Net:32,48,64,72,80,96,120,128,144 and more Available

6) Braiding Coverage:Between 30-97%

7) PVC Jacket of flame retardant Available

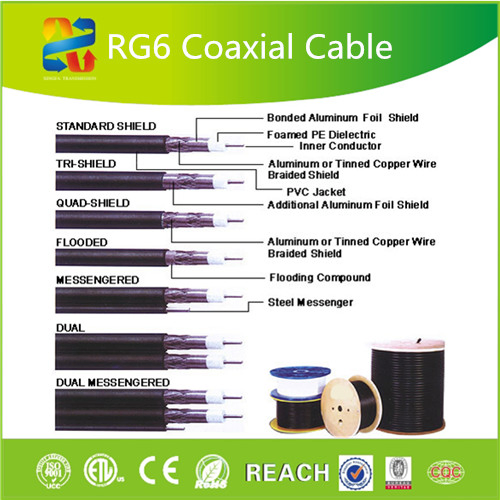

1) RG6 Coaxial Cable 75ohm Dual Standard
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90±0.05mm PVC Jacket

2) RG6 Coaxial Cable 75ohm Tri Shielded
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+Al Foil+6.9mm PVC Jacket

3) RG6 Coaxial Cable 75ohm Quad Shield
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +7.5mm PVC Jacket
4) RG6 Coaxial Cable 75ohm With Messenger
1.02±0.01mm CCS Conductor+4.57±0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90±0.05mm PVC Jacket+1.30+0.05mm Messenger

5)OEM

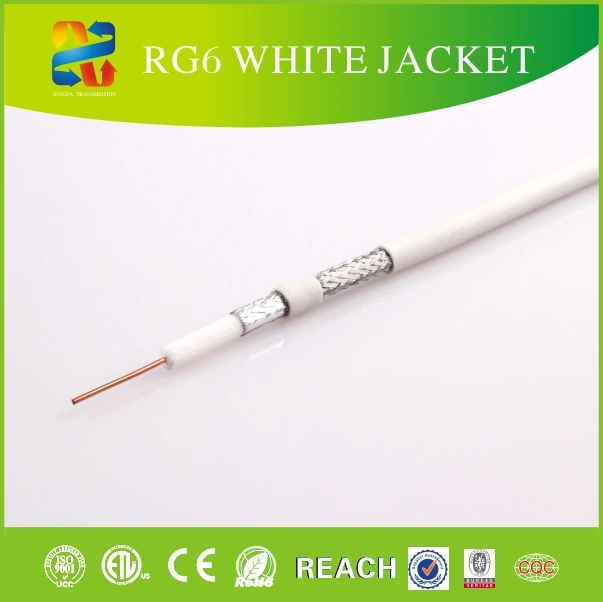

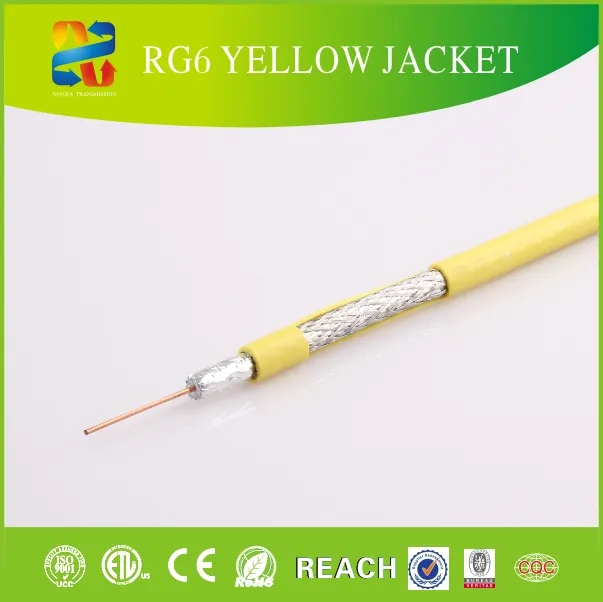

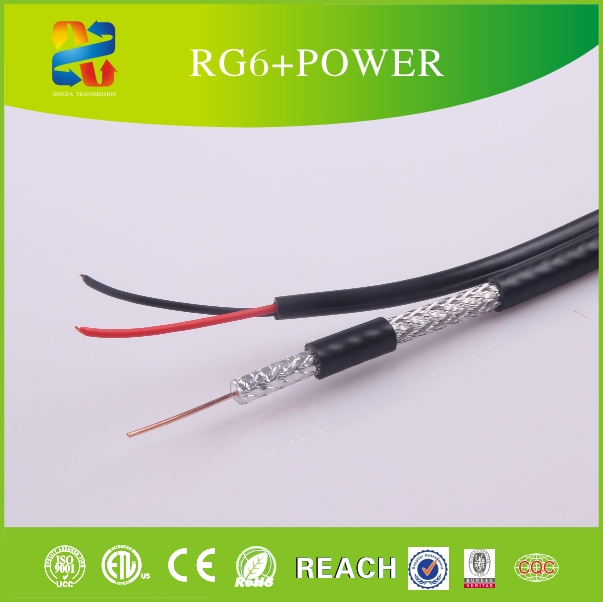

Cable photos

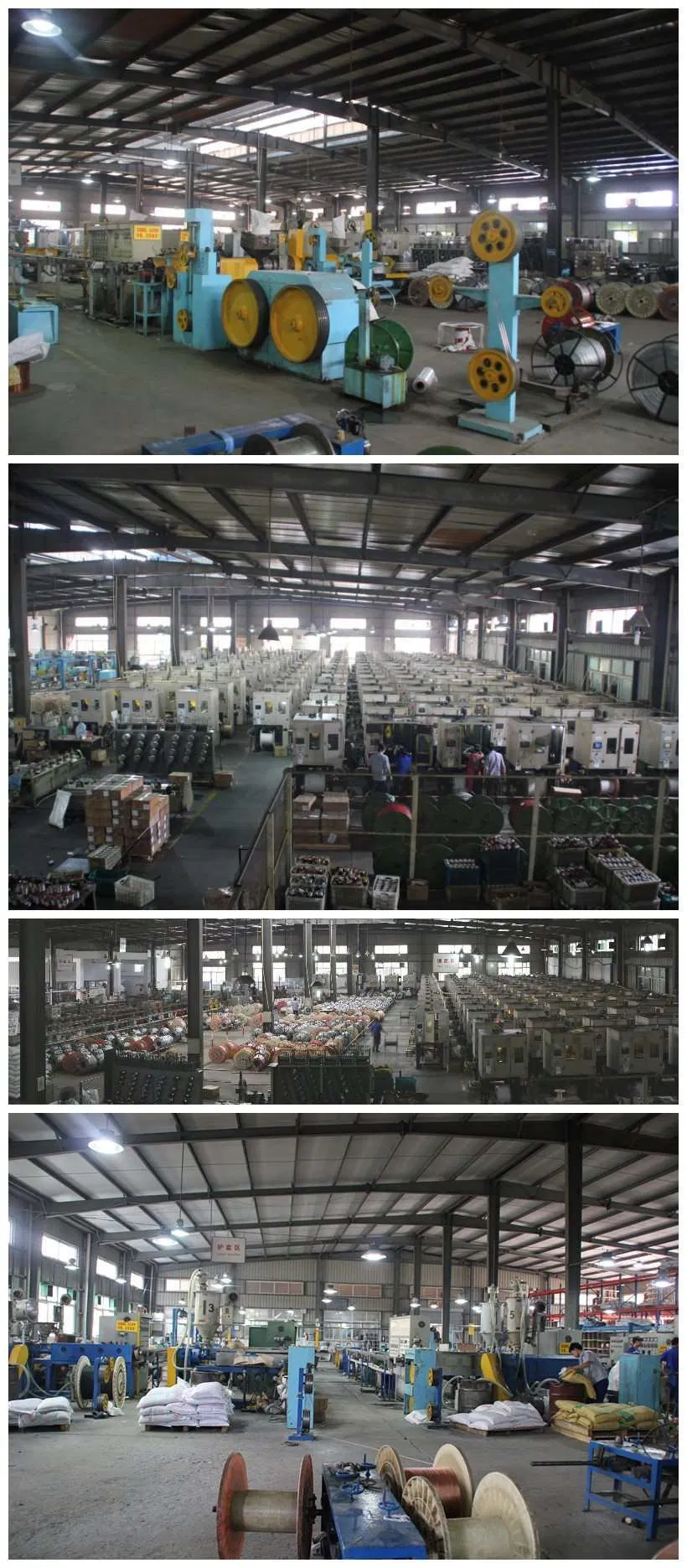

Production flow

Contact info
