Product Description

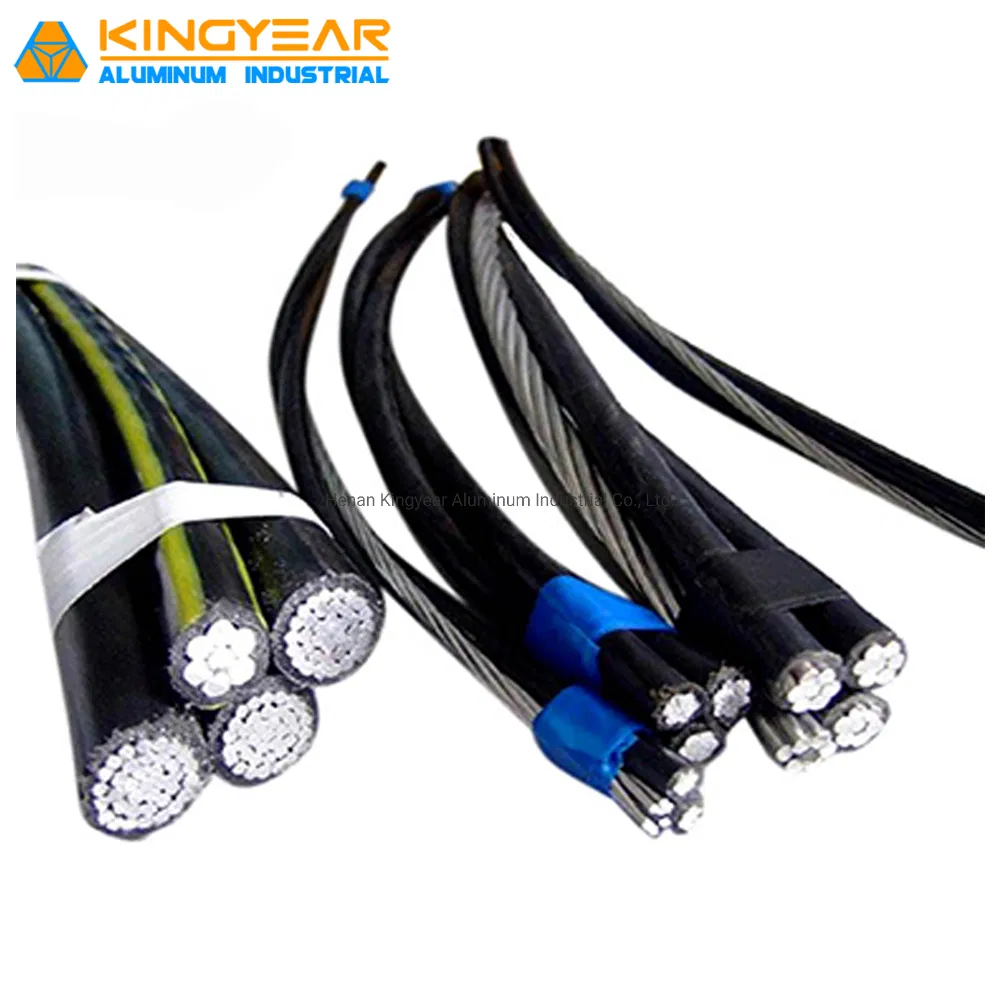

3 core aluminum conductor ABC 185mm2 33kV ABC aerial bundle cable ABC cable

Applications
Medium voltage Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.

Standard
Basic design to IEC 60502 / AS/NZS 3599-1 standards

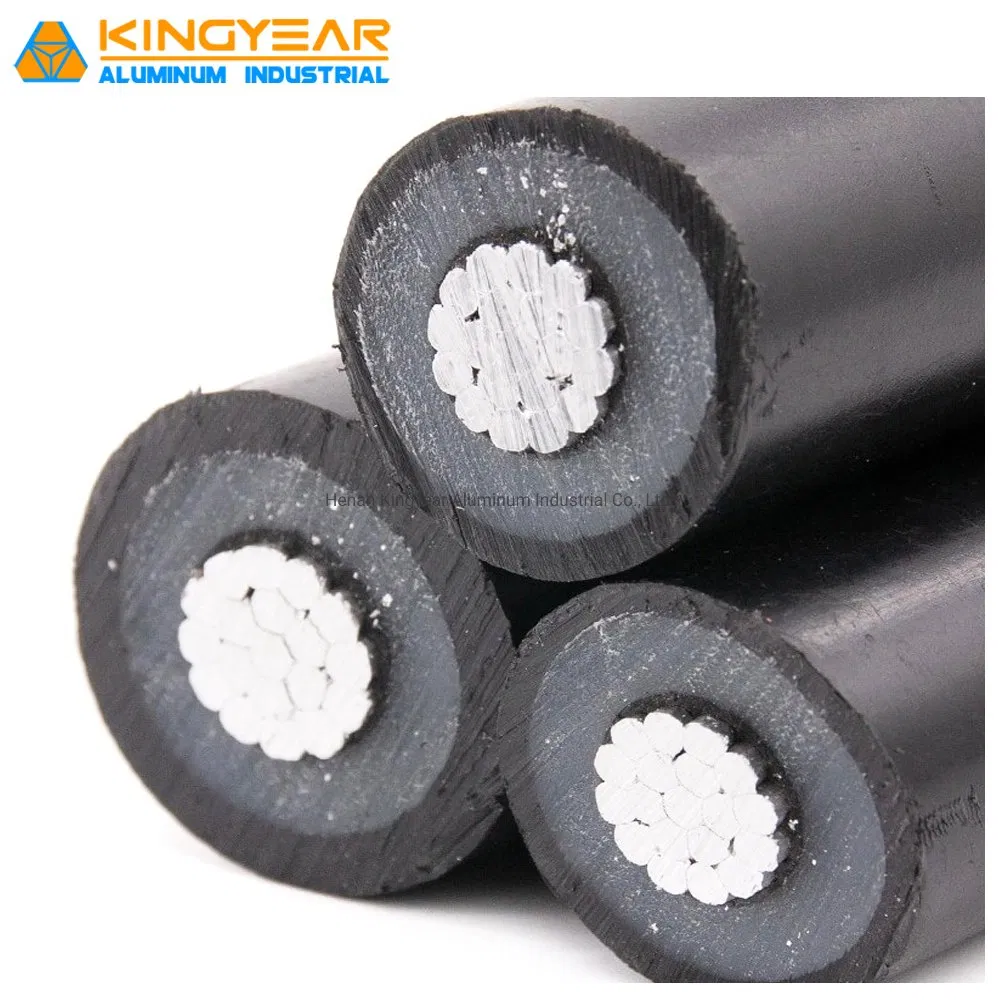

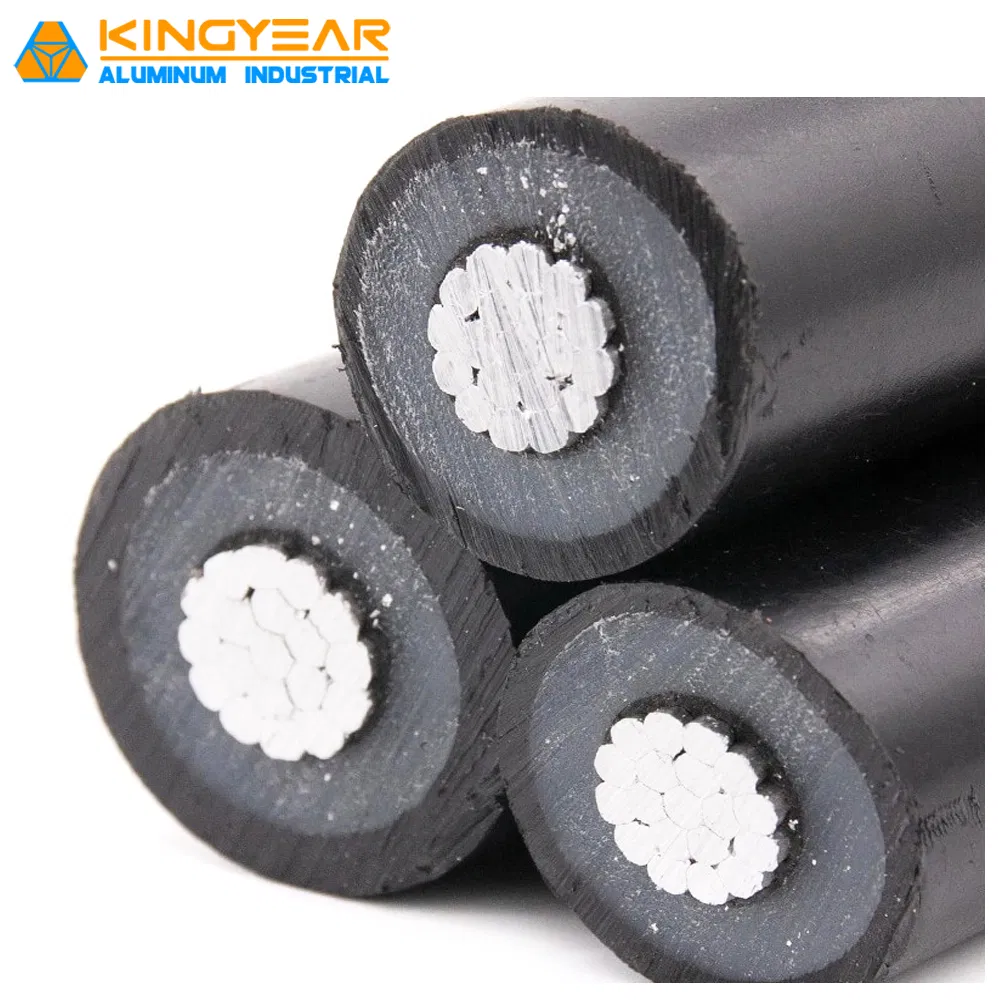

Cable Construction
Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen: Extruded semi-conductive layer.
Insulation: XLPE.
Insulation Screen: Extruded semi-conductive layer.
Metallic Screen(optional): Copper wire screen or copper tape screen.
Separator: Semi-conductive swellable tape.
Outer Sheath: HDPE.
Support Conductor: Galvanized steel wires.
Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel
wires in a right hand lay.

Specification

ross section	No. of wires	Conductor diam.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]		[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	13.6	464	190	0.868	187
50	7	8.2	14.7	663	235	0.641	225
70	19	9.7	16.2	928	315	0.443	282
95	19	11.5	18	1259	400	0.320	345
120	19	12.9	19.4	1591	500	0.253	401
150	19	14.2	20.7	1988	580	0.206	456
185	37	16.2	22.6	2452	695	0.164	525
240	37	18.4	24.9	3182	875	0.125	625
300	37	20.7	27.1	3977	1070	0.100	721

IEC 60502 6.35/11 kV ABC for Overhead Distribution Lines

Number of Cores x Nominal Cross Section	Phase Conductor			Messenger Suspension Unit			Continuous current rating at 300C ambient temp
Number of Cores x Nominal Cross Section	Stranding	Nominal Sectional Area	Maximum Conductor Resistance	Stranding	Nominal Sectional Area	Breaking Load	Continuous current rating at 300C ambient temp
No./ mm²	No./mm	mm²	Ω/Km	No./mm	mm²	KN	A
3X50 + 1X25	19/1.78	50	0.641	7/3.0	50	60	116
3X70 + 1X50	19/.14	70	0.443	7/3.15	50	62	210
3X95+ 1X50	19/2.52	95	0.32	7/3.0	50	60	173
3X185+1X120	37/2.52	185	0.164	7/4.67	120	150	259
3X150 +1X50	37/2.25	150	0.206	7/3.15	50	62	365
3X240 +1X50	61/2.25	240	0.125	7/3.15	50	62	500
