Product Description

Conductor: fine strands of oxygen-free copper wire, according to VDE0295 CLASS 5 standard   or 6 standard
Insulation: Special mixed PVC
Color code : following 227IEC+EN50214
Outer Jacket: Special mixed BNR PVC

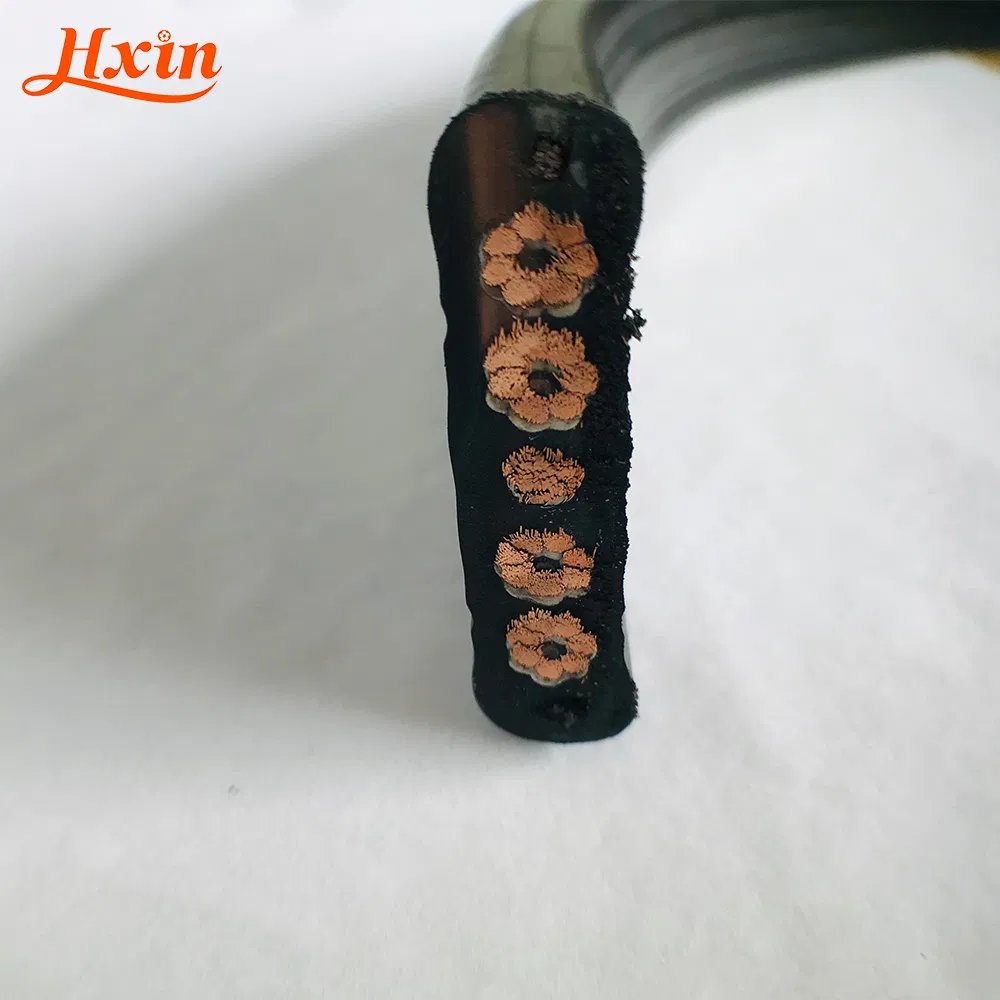

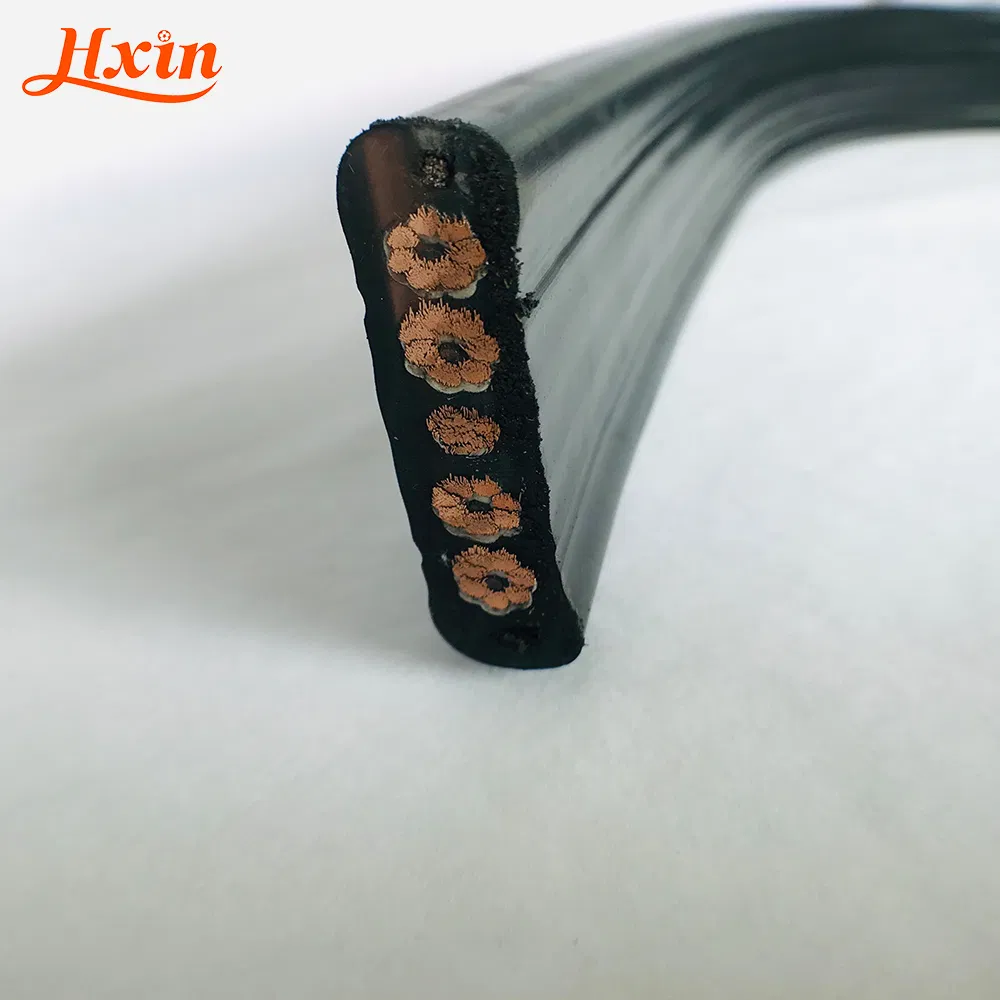

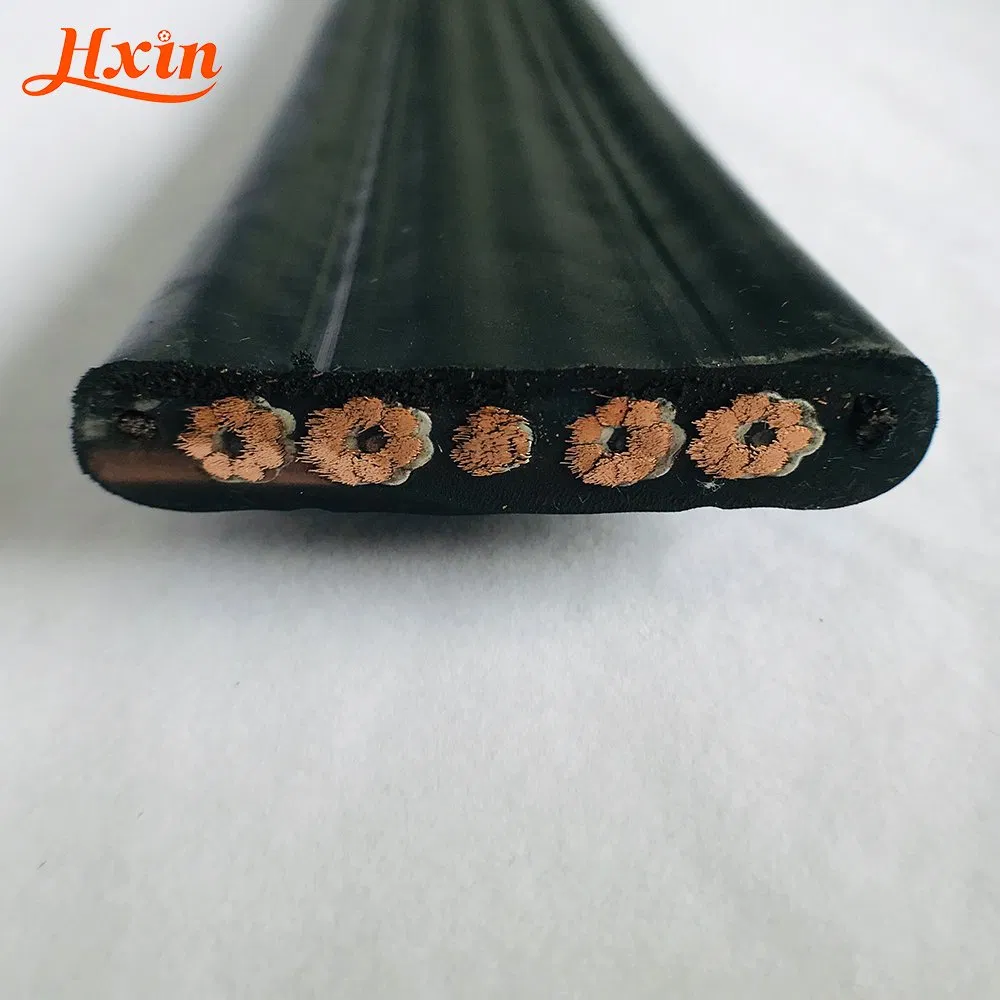

Conductor constrcution:in line or plum flower arrangement
Strengthen Parts: galvanized flexible steel wire(Free hanging length over 80 metres)
Outer jacket color : Black(RAL9005)or grey(RAL7001)

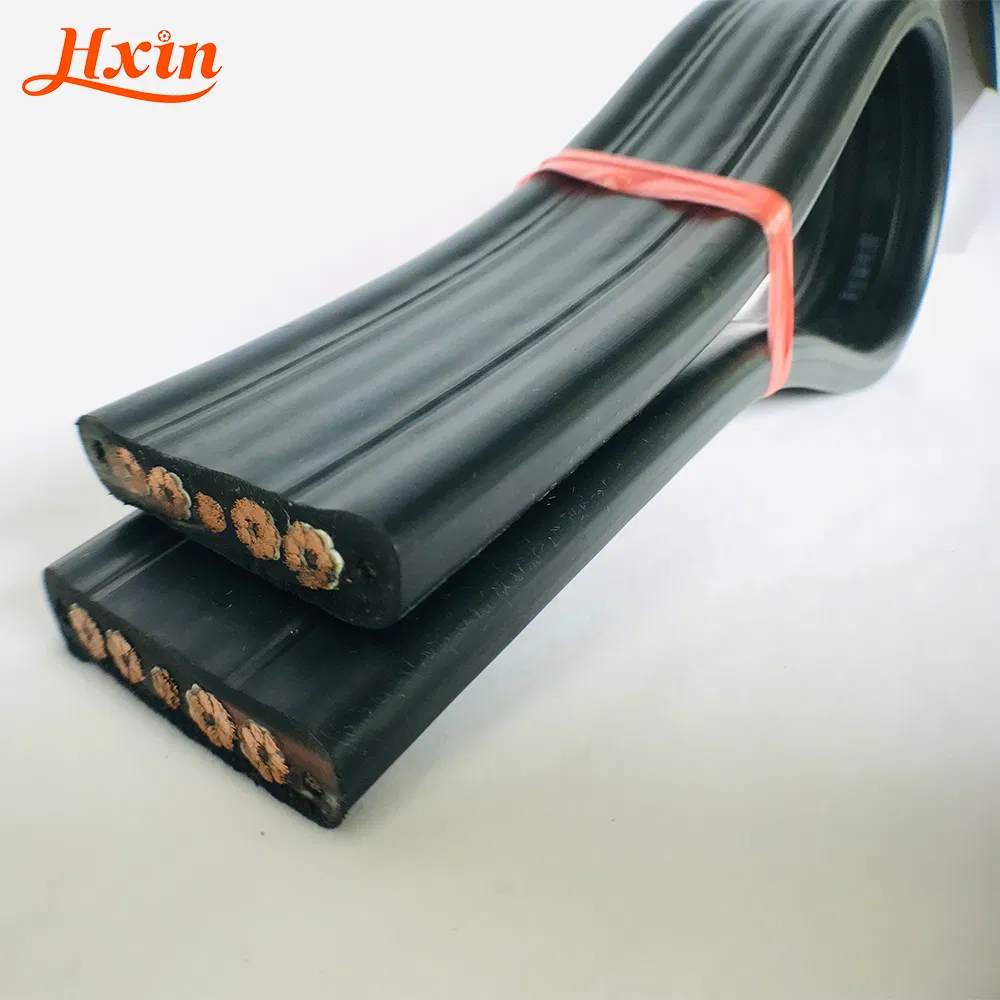

Cores 4*7*0.75+Video Transmission Wire Flexible Flat Cable Crane Pendant Cable for Crane and Lift

Cores 4*7*0.75+Video Transmission Wire Flexible Flat Cable Crane Pendant Cable for Crane and Lift

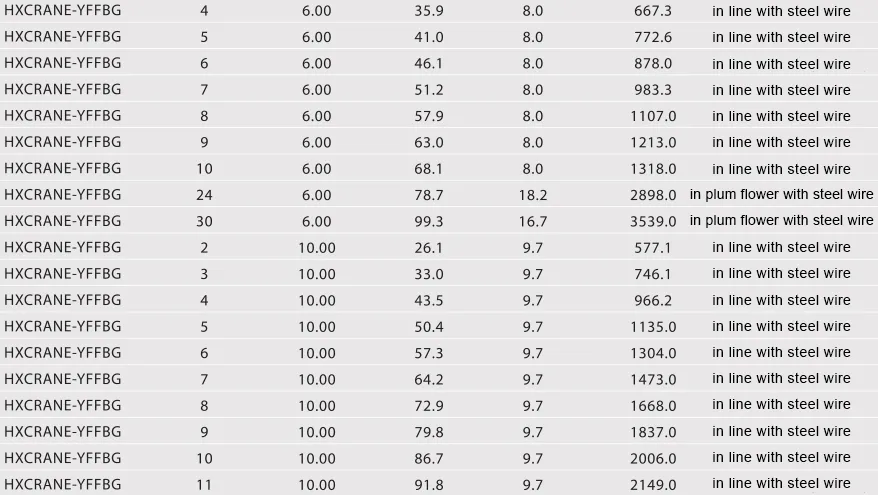

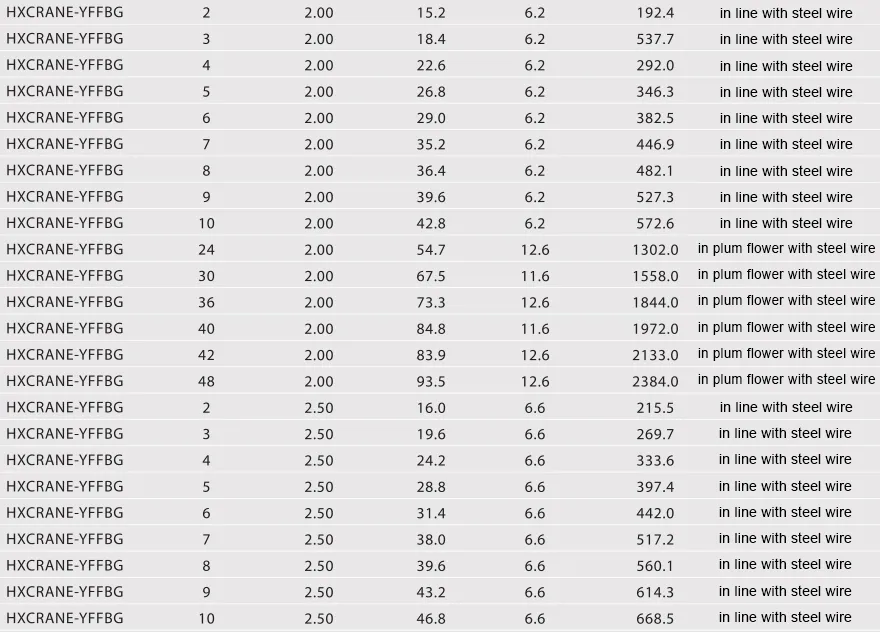

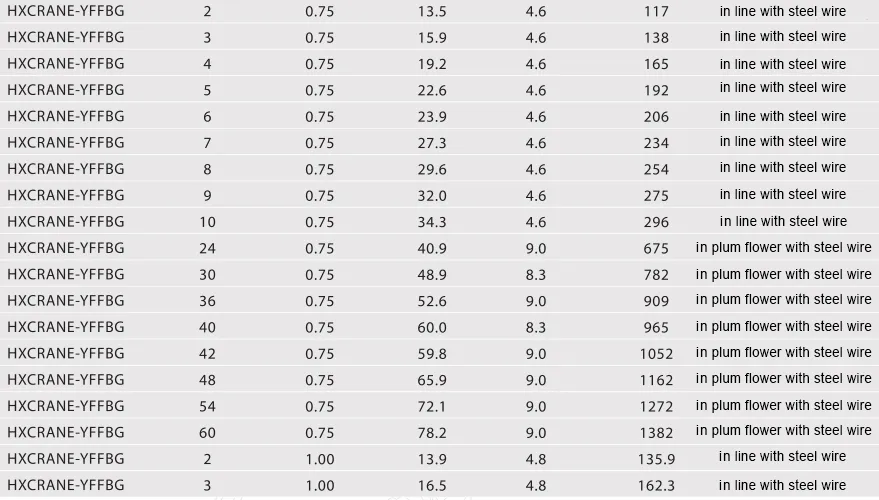

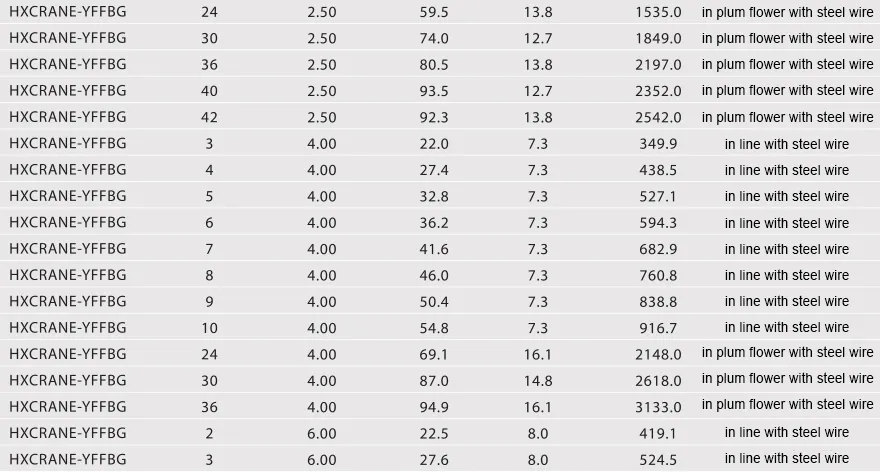

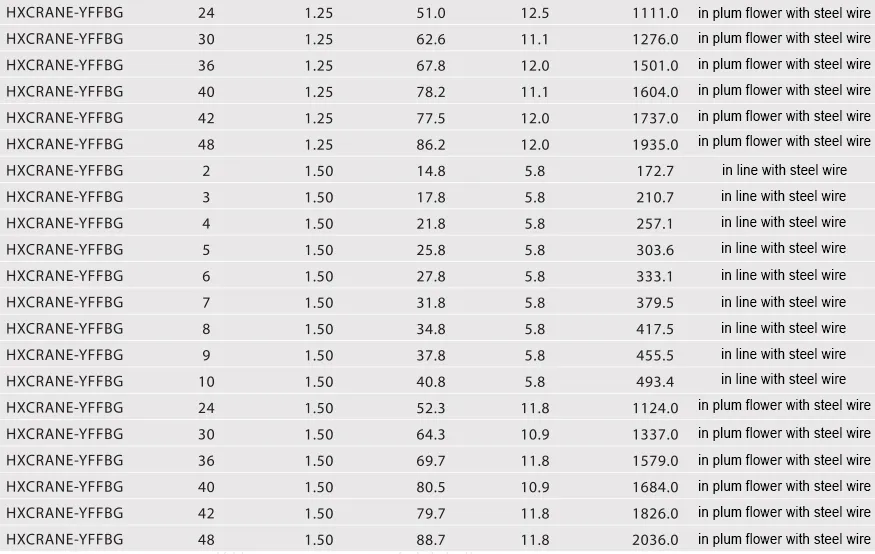

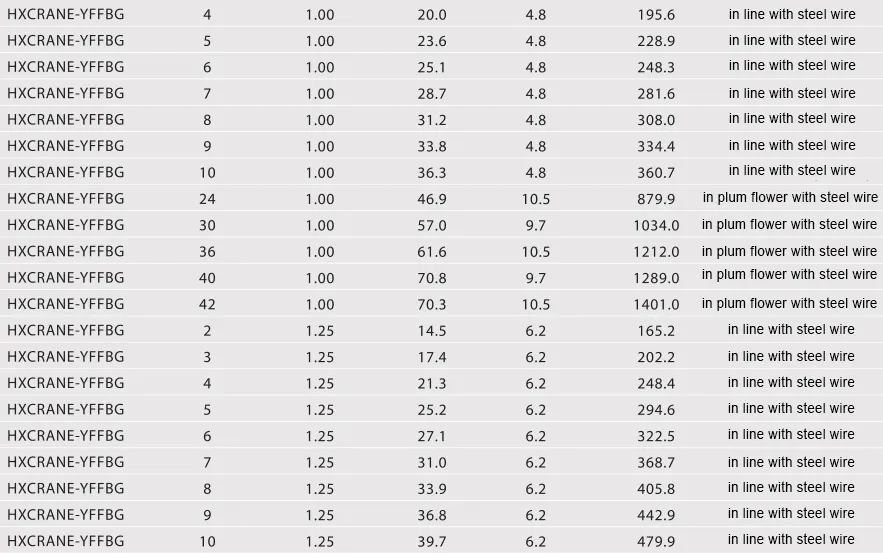

Technical parameters

Rated voltage:U0/U450/750V
Test voltage: 2500V
Application temperature: Fixed installation;-25ºC - +70ºC
movable installation;-15ºC- +70ºC
Minimum bending radius: Fixed installation:8×D
Movable installation:10×D
Flame resistance:Following IEC60332-1

Product Features

1.Tensile and tearing resistance, stable performance,long service life
2.Good oil resistance, abrasion resistance, cold resistance and weatherability ,UV resistance
3.in line arrangement: freedom use length less than 35m,moving speed less than1.6/S
4.plum flower arrangement:freedom use length less than 80m,moving speed is 4-10m/s

Cores 4*7*0.75+Video Transmission Wire Flexible Flat Cable Crane Pendant Cable for Crane and Lift

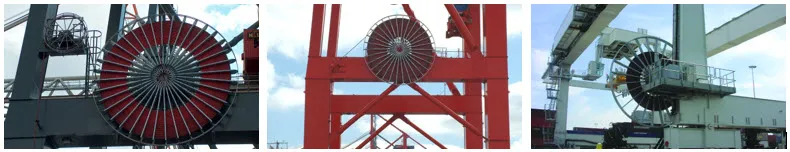

Application

used in rail travelling crane, trolley,conveyors,tower crane and a variety of inspection equipments,installation for self supporting wells and storage rack, suitable for power transmission, control, lighting, communications lines.
