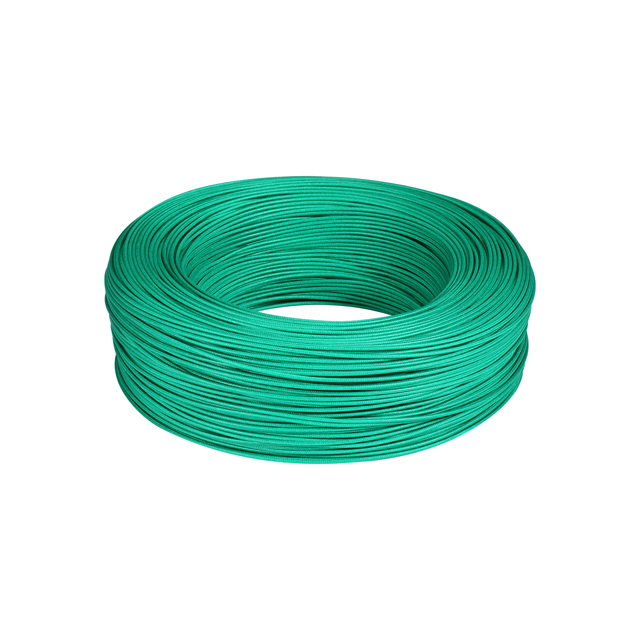

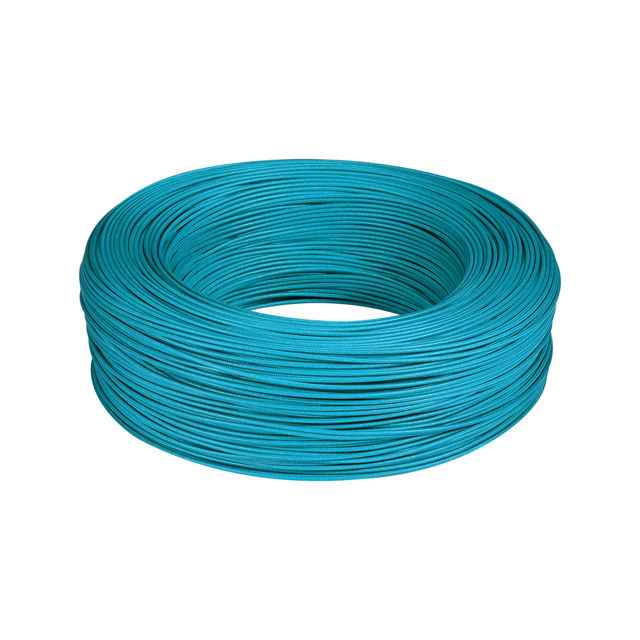

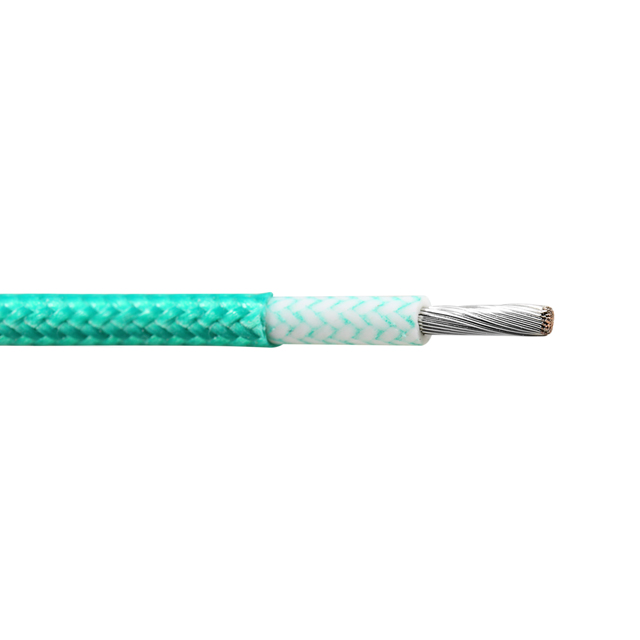

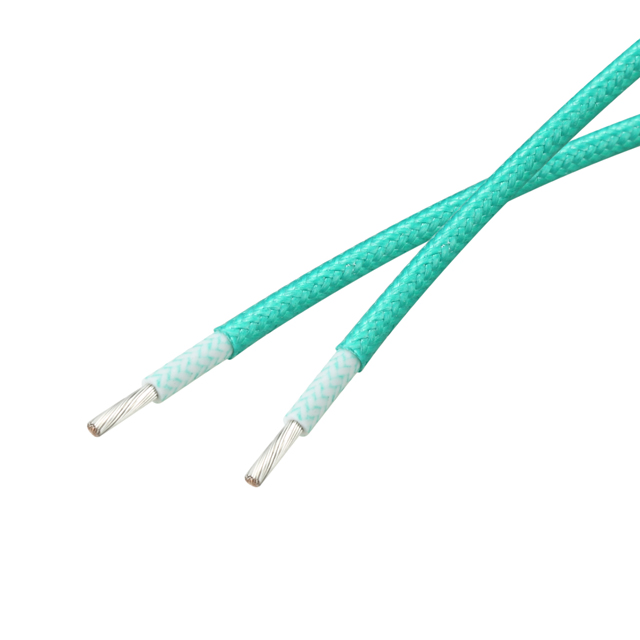

Product Description

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
26	7/0.16	0.48	0.60	1.68	143	305/1000
24	7/0.20	0.61		1.81	89.3
22	7/0.254	0.77		1.97	56.4
20	7/0.31	0.94		2.14	35.2
18	7/0.39	1.19		2.39	22.2
16	7/0.49	1.49		2.69	14
24	1/0.50	0.50	0.65	1.80	89.3	305/1000
22	1/0.65	0.65		1.95	56.4
20	1/0.81	0.81		2.11	35.2
18	1/1.02	1.02		2.32	22.2
16	1/1.20	1.20		2.50	14
24	11/0.16	0.61	0.60	1.81	89.3	305/1000
22	17/0.16	0.76		1.96	56.4
20	26/0.16	0.94		2.14	35.2
18	41/0.16	1.18		2.38	22.2
16	26/0.254	1.49		2.69	14
0.30mm²	12/0.18	0.71	0.60	1.91	59.78	305/1000
0.50mm²	20/0.18	0.92		2.12	40.1
0.75mm²	30/0.18	1.13		2.33	26.7
1.00mm²	40/0.18	1.31		2.51	20
1.25mm²	50/0.18	1.46		2.66	14.35

Service
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
