Product Description

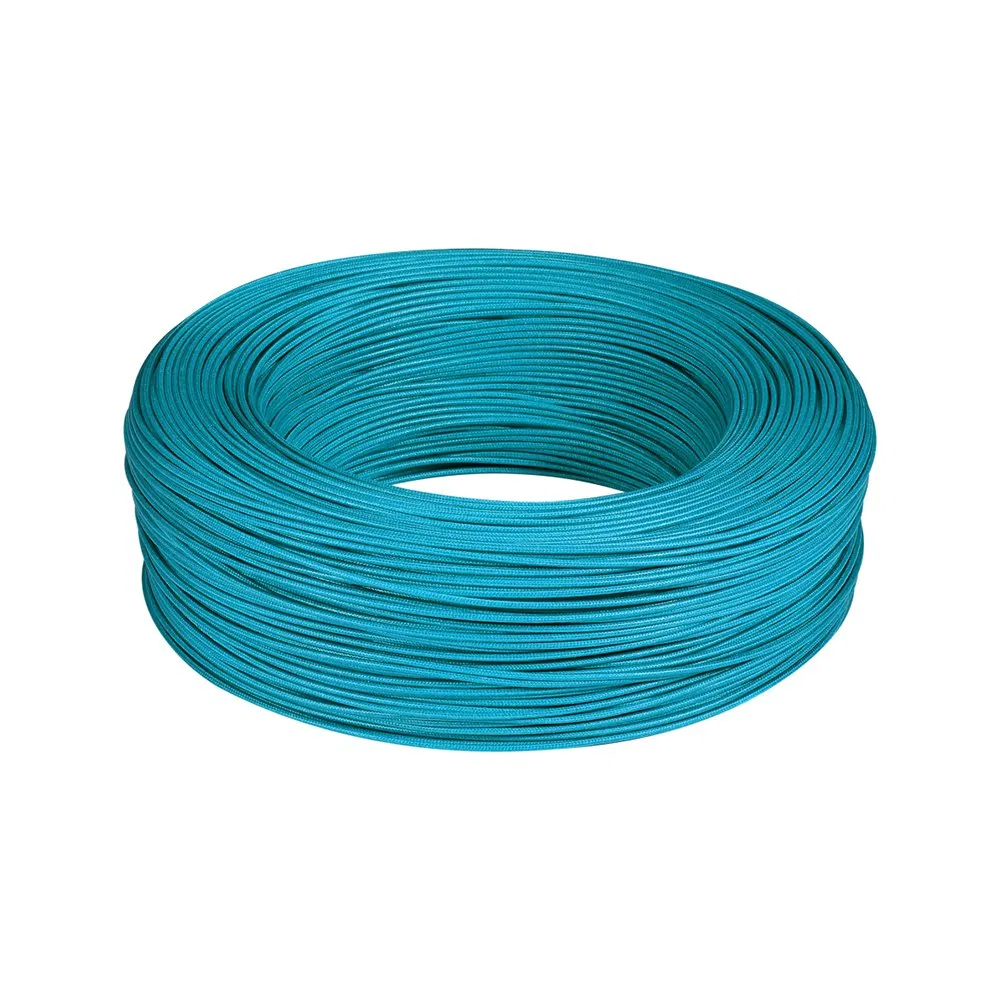

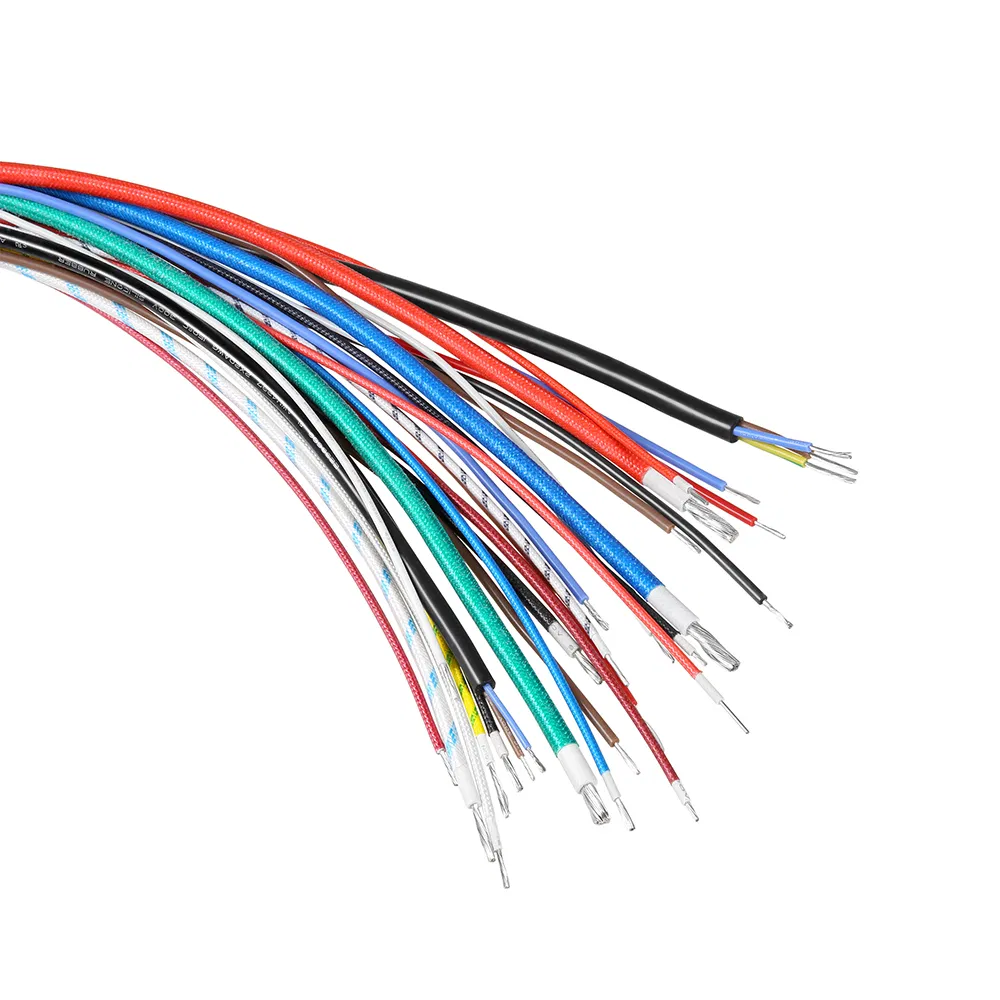

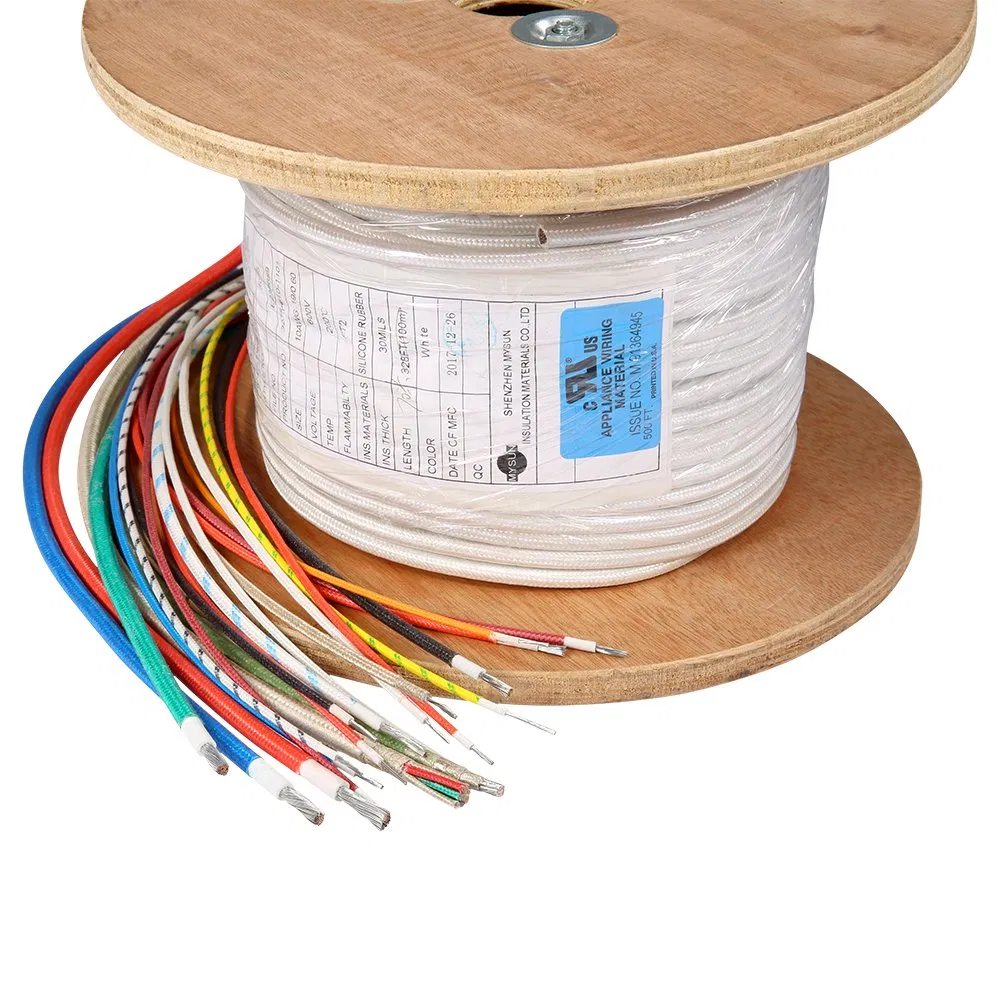

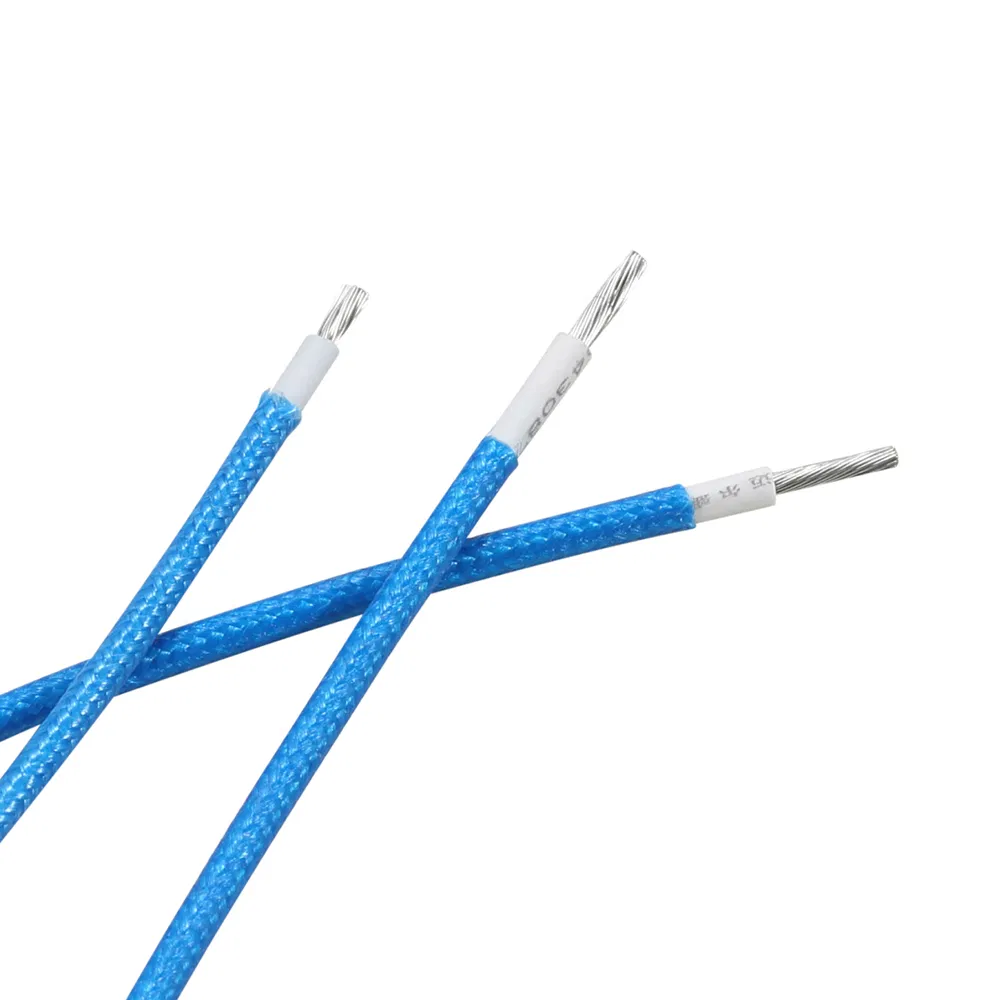

UL 3074 SILICONE FIBERGLASS WIRES ELECTRIC WIRES

Product dimensions:

Conductor			Insulation		Max.Cond Resistance (Ω/KM)	Unit length(M)(Ft)
Size (AWG)	Construction(No./mm)	Diameter	Nominal thickness(mm)	Diameter	Max.Cond Resistance (Ω/KM)	Unit length(M)(Ft)
30	7/0.010	0.30	0.78	1.86	381	610/2000
28	7/0.127	0.38	0.78	1.94	239	610/2000
26	7/0.16	0.48	0.78	2.04	150	610/2000
24	11/0.16	0.60	0.78	2.16	94.2	610/2000
22	17/0.16	0.76	0.78	2.32	59.4	305/1000
20	21/0.18	0.94	0.78	2.49	36.7	305/1000
18	16/0.254	1.18	0.78	2.73	23.2	305/1000
16	26/0.254	1.50	0.78	3.06	14.6	305/1000
14	41/0.254	1.89	0.78	3.45	8.96	305/1000
12	65/0.254	2.37	0.78	3.93	5.64	305/1000
10	105/0.254	3.02	0.78	4.58	3.55	305/1000
9	133/0.254	3.36	0.78	4.92	2.82	305/1000
8	133/0.28	3.75	1.15	6.05	2.23	100/328
7	65/0.45	4.21	1.53	7.27	1.77	100/328
6	84/0.45	4.79	1.53	7.85	1.41	100/328
4	133/0.45	6.02	1.53	9.08	0.89	100/328
2	212/0.45	7.60	1.53	10.66	0.56	100/328

Service

Shipment:
1. by express
2. by sea
Mysun UL3512 High Temperature Resistant Flexible Silicone Rubber Fiberglass Wire Electric Wires
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!

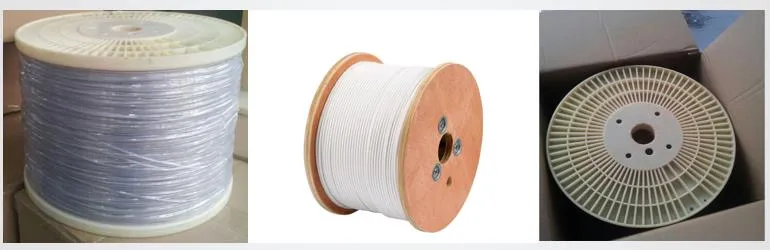

Packaging:

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
