Break-out Fiber Optic Cable
Quick DetailsPlace of Origin: Zhejiang, China (Mainland)Brand Name: YU JINModel Number: MMType: Cat 1Number of Conductors: ≥ 10Application: Telecommunicationfiber cores: 2~24Packaging & DeliveryPackaging Details: Each single length of optical cable should be reeled on fumigated wooden dru......
Send Inquiry
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YU JIN
Model Number: MM
Type: Cat 1
Number of Conductors: ≥ 10
Application: Telecommunication
fiber cores: 2~24
Packaging & Delivery
Packaging Details: Each single length of optical cable should be reeled on fumigated wooden drum,and covered by plastic buffer sheet,then sealed by strong wooden battens
Delivery Detail: as to request
Specifications

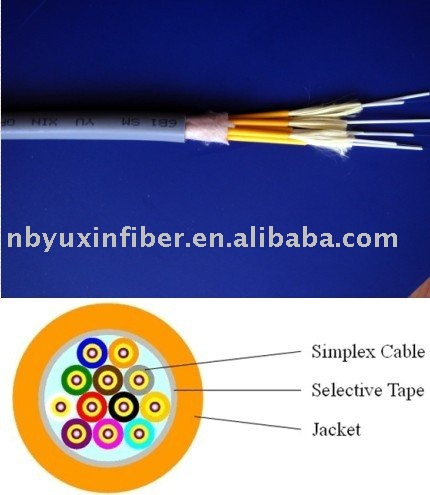

Break-out fiber optic cable
1.Cable diameter and bending radius small.
2.It can install freely . weight
Geometical Characteristics
/Mechanical Characteristics
Fiber
Transmission Charactrristics
Environmental Characteristics
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YU JIN
Model Number: MM
Type: Cat 1
Number of Conductors: ≥ 10
Application: Telecommunication
fiber cores: 2~24
Packaging & Delivery
Packaging Details: Each single length of optical cable should be reeled on fumigated wooden drum,and covered by plastic buffer sheet,then sealed by strong wooden battens
Delivery Detail: as to request
Specifications
Break-out fiber optic cable
1.Cable diameter and bending radius small.
2.It can install freely . weight
Geometical Characteristics
| Distribution Cable type | 2 | 4 | 6 | 8 | 10 | 12 | 24 |
| Distribution Cable Diameter(mm) | 4.00 | 4.80 | 5.10 | 5.60 | 5.80 | 6.20 | 8.30 |
| Distribution Cable Weight(kg/km) | 12.4 | 16.2 | 20 | 26 | 28 | 31.5 | 48 |
| TBF Diamete(μm) | 900±50 | ||||||
| Max lood(NO) | Long term | 130 | 130 | 130 | 130 | 130 | 130 | 200 |
| Short term | 440 | 440 | 440 | 440 | 440 | 440 | 440 | |
| Bending Radius(CM) | Dynamic | 20×D (DCable Diameter | ||||||
| Static | 10×D (DCable Diameter | |||||||
| Fiber type(core/cladding dimension) | 9/125,50/125,62.5/125 |
| SMF | 50/125 | 62.5/125 | |
| 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
| Max Attenuation(dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
| AVG Max Attenuation(dB/km) | 0.40/0.25 | 3.0/1.0 | 3.0/1.0 |
| Mini Bandwidth(MHZ·km) | --- | 400/400 | 160/500 |
| Storage Operating emperature | -20+60 |
