Product Description

BS 6724 Standards Armoured Power Cables, 1900/3300V
1900/3300 V cables with stranded copper conductors

Thermosetting insulated armoured cables - 600/1000V to 1900/3300V - with low emission of smoke and corrosive gases when affected by fire. Manufactured in accordance with British Standard BS6724

1. Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

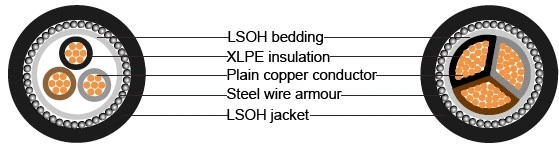

2. Construction

CONDUCTOR	Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460,
	IEC 60228.
INSULATION	XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
COLOUR CODE	1 Core : Brown
	2 Cores : Brown or Blue
	3 Cores: Brown, Black, Grey
	4 Cores: Blue, Brown, Black, Grey
	5 Cores: Green/Yellow, Blue, Brown, Black, Grey
	Above 5 Cores: White Cores with black numerals
BEDDING	LSOH (Low Smoke Zero Halogen)
ARMOUR	Single Core: AWA (Aluminum Wire Armour)
	Multi Core: SWA (Steel Wire Armour)
OUTER SHEATH	LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Halogen free IEC 60754, EN 50267
Smoke density IEC 61034, EN50268

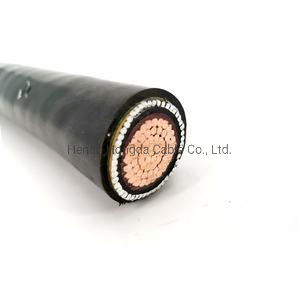

3. Single-core 1900/3300 V cables with circular stranded copper conductor
BS 6724 Standards Armour Power Cable 1core 3core 1900/3300 V Cables

NOMINAL CROSS-SECTIONAL AREA	STRAND TYPE	NOMINAL INSULATION THICKNESS	NOMINAL BEDDING THICKNESS	NOMINAL ALUM WIRE ARMOR DIA.	NOMINAL SHEATH THICKNESS	APPROX. OVERALL DIAMETER	APRROX WEIGHT
MM²	NO./MM	MM	MM	MM	MM	MM	KG/KM
1x50	19/1.78	2	0.8	1.25	1.6	20.6	790
1x70	19/2.14	2	0.8	1.25	1.6	22.4	1040
1x95	19/2.52	2	0.8	1.25	1.6	24.3	1330
1x120	37/2.03	2	1	1.6	1.7	27.2	1680
1x150	37/2.25	2	1	1.6	1.7	28.8	1970
1x185	37/2.52	2	1	1.6	1.8	30.8	2370
1x240	61/2.25	2	1	1.6	1.8	33.5	2960
1x300	61/2.52	2	1	1.6	1.9	36.1	3610
1x400	61/2.85	2	1.2	2	2	40.5	4600
1x500	61/3.20	2.2	1.2	2	2.1	44.2	5680
1x630	127/2.52	2.4	1.2	2	2.2	48.8	7160
1x800	127/2.85	2.6	1.4	2.5	2.4	55.4	9150
1x1000	127/3.20	2.8	1.4	2.5	2.5	60.6	11270

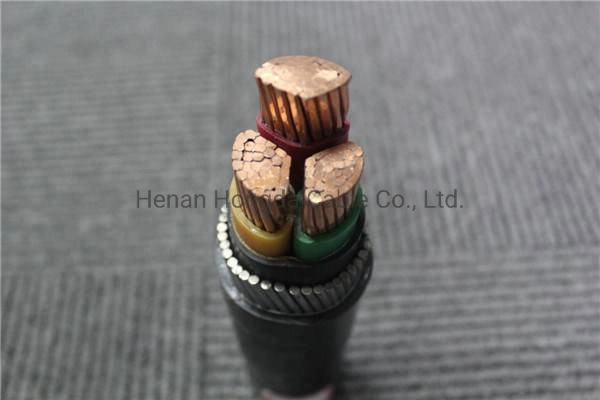

4. Three-core 1900/3300 V cables with stranded copper conductors

BS 6724 Standards Armour Power Cable 1core 3core 1900/3300 V Cables

NOMINAL CROSS-SECTIONAL AREA	STRAND TYPE	NOMINAL INSULATION THICKNESS	NOMINAL BEDDING THICKNESS	NOMINAL STEEL WIRE ARMOR DIA.	NOMINAL SHEATH THICKNESS	APPROX OVERALL DIAMETER	APRROX WEIGHT
MM²	NO./MM	MM	MM	MM	MM	MM	KG/KM
3x16	7/1.70	2	1	1.6	1.8	29.3	1600
3x25	7/2.14	2	1	1.6	1.8	32.2	2060
3x35	7/2.52	2	1	1.6	1.9	34.8	2400
3x35*	7/2.52	2	1	1.6	1.9	31.1	2400
3x50*	19/1.78	2	1.2	2	2	34.7	3200
3x70*	19/2.14	2	1.2	2	2.1	38	3800
3x95*	19/2.52	2	1.2	2	2.2	41.4	4730
3x120*	37/2.03	2	1.4	2.5	2.3	45.7	6070
3x150*	37/2.25	2	1.4	2.5	2.4	48.5	7010
3x185*	37/2.52	2	1.4	2.5	2.5	51.9	8270
3x240*	61/2.25	2	1.6	2.5	2.6	56.9	10310
3x300*	61/2.52	2	1.6	2.5	2.7	61.2	12300
3x400*	61/2.85	2	1.6	2.5	2.9	66.6	14500

5. Notes
1. Due to mechanical protection provided by their armours, cables manufactured to BS6724 are suitable for applications in industrial wiring and mains distribution where there is a risk of mechanical damage and for direct burial.
2. If you are considering installing in high UV exposure and/or high/low ambient temperatures i.e. desert/arctic conditions then special sheathing may be required.
3. Whilst HONGDA CABLE plc endeavours to ensure the information on the website, specification sheets and all other technical information is accurate, the information is for guidance only and it is subject to change without notice or liability. Hongda Cable Plc is not responsible for the consequences of any inadequacies, inaccuracies or other deficiencies contained therein. When selecting cable accessories, please note that the actual cable dimensions may vary due to manufacturing tolerances.
