Product Description

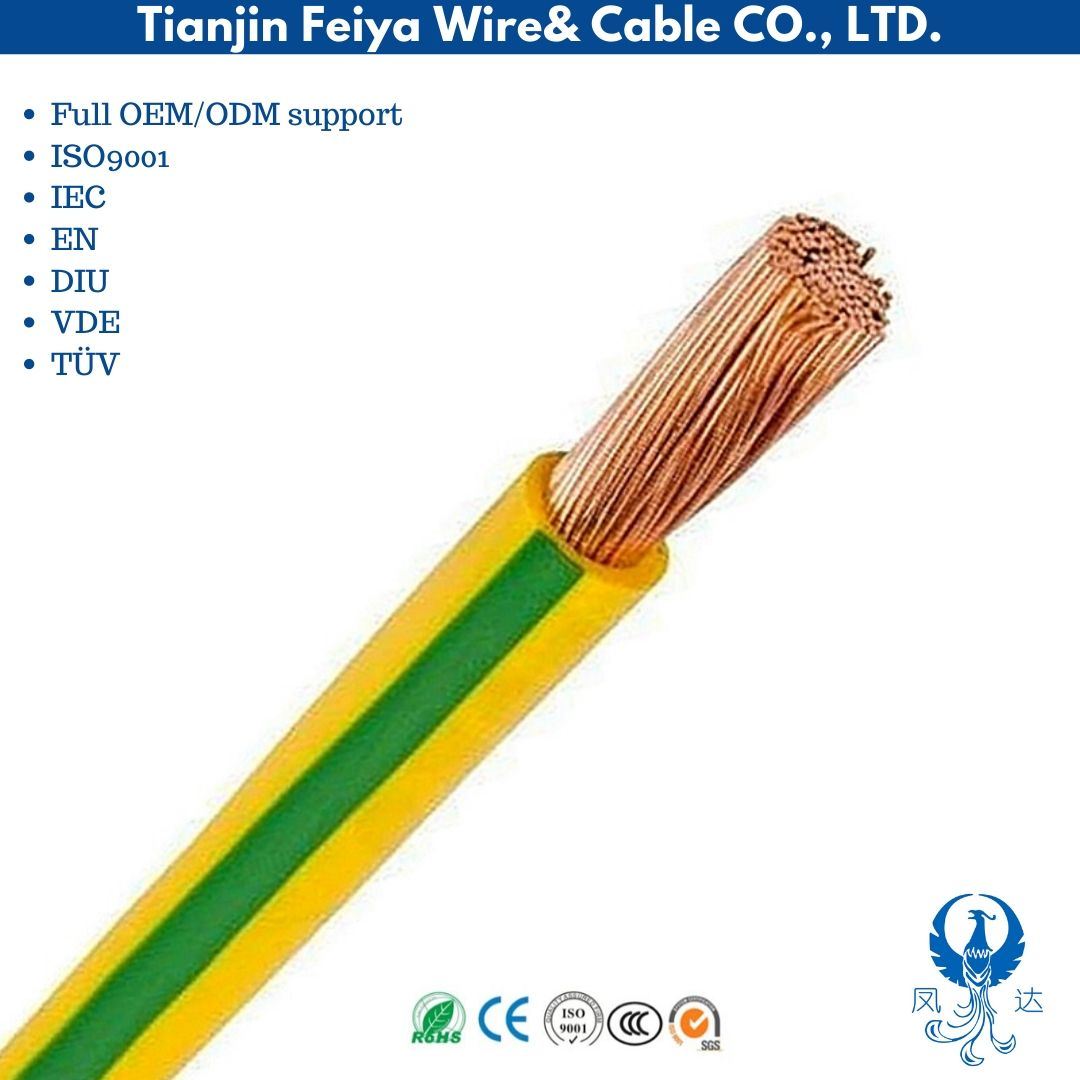

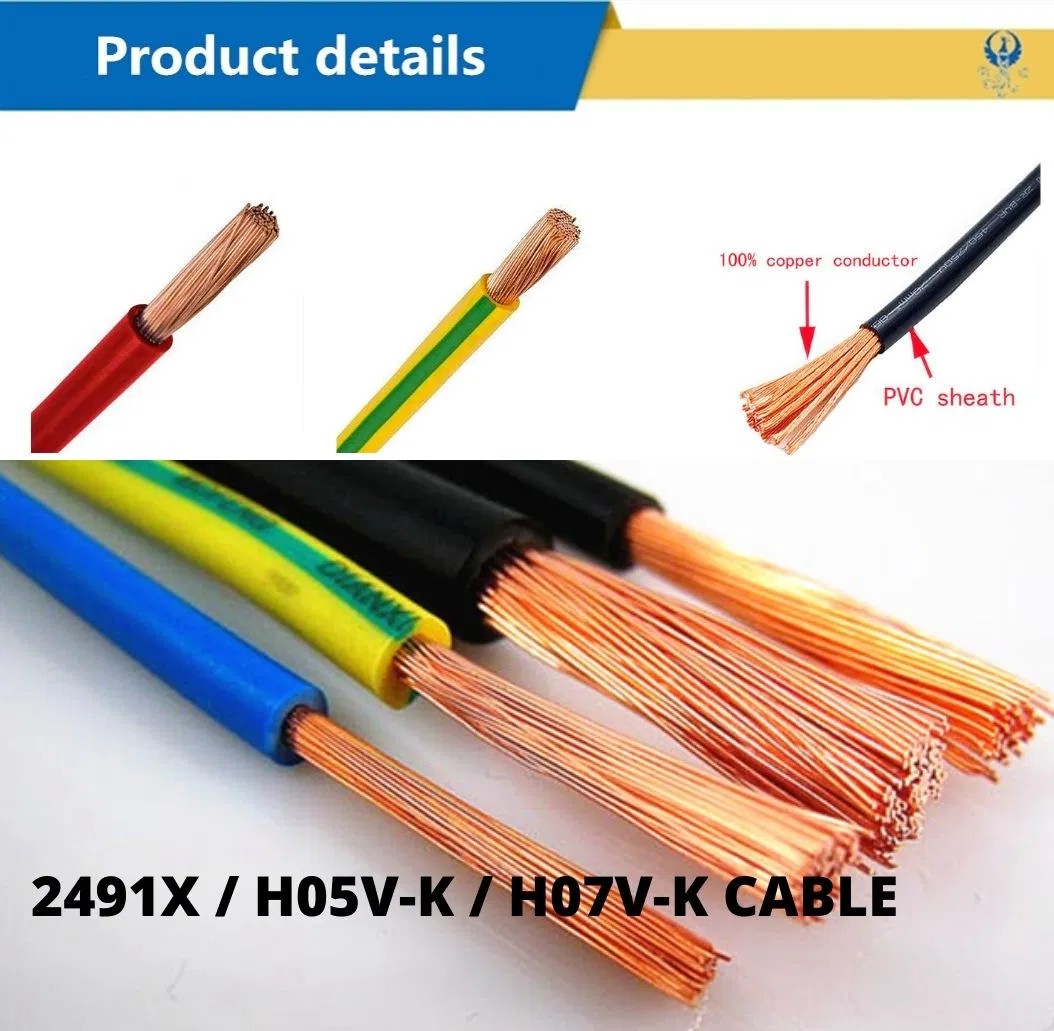

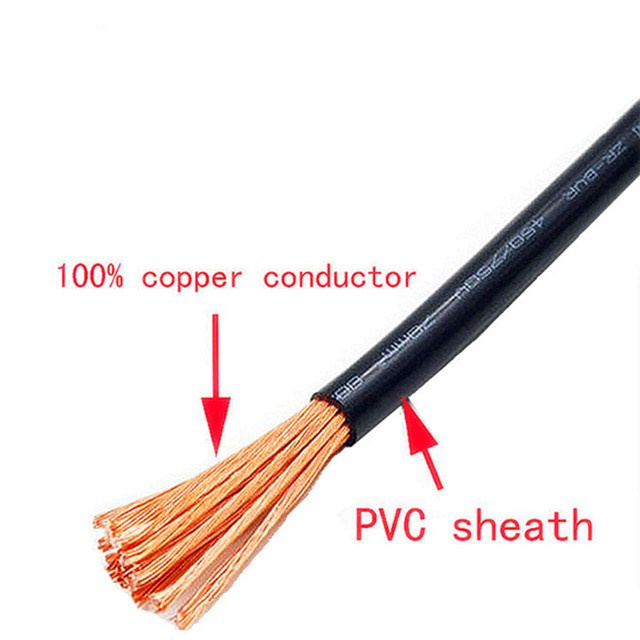

2491X / H07V-K / H05V-K Cable Copper Conductor Hook-up Wire Cable for internal equipment wiring

Introduction
1	Can be customized according to requirements.
2	Independent brand recruitment agency.
3	High quality, ISO 9001, CCC, CE, RoHS certified.
4	ODM&OEM is available.

H05vvf 2491X / H05V-K / H07V-K BS En 50525-2-31 Flexible Cable PVC Cable PVC Flexible Cable

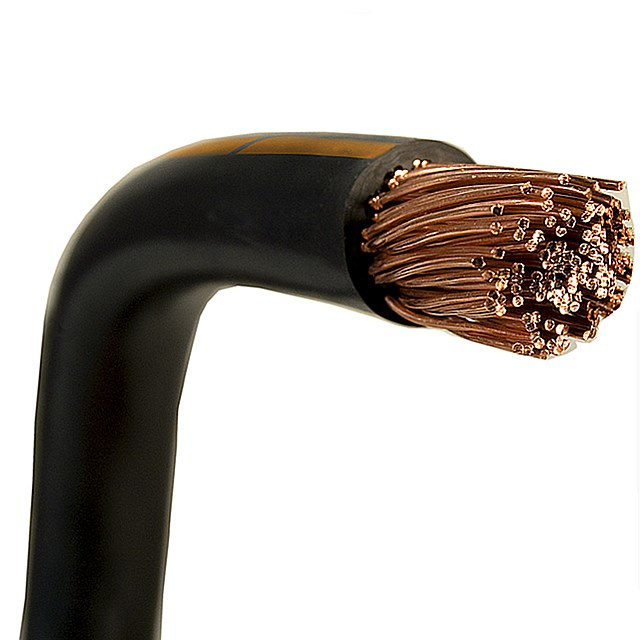

2491X / H07V-K / H05V-K Designed for internal equipment wiring in switch control, relay and instrumentation panels of power switchgear, and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, this flexible cable can be installed in open air, in conduits, or in trunking.

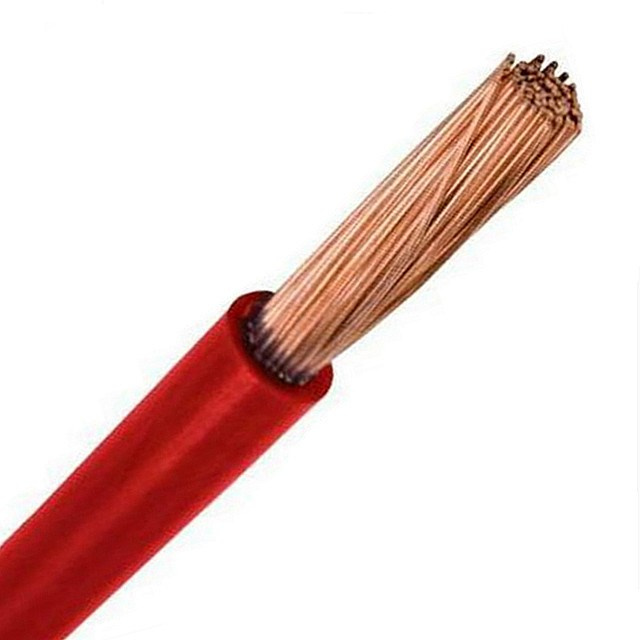

H07V-K 450/750 V PVC-Single Cores, fine wire stranded

Conductor cross section	minimum wall-thickness	Outer Ø min. - max.	Weight approx.	Minimum Insulation Resistance at 70 ºC	Maximum current rating Air 25 ºC	Conductor DC resistant at 20°C	Standard length
mm²	mm	mm	kg / km	MΩ.km	A	Ω/km	m
1.5	0.7	2.8 - 3.4	19	0.010	16	13.3	100
2.5	0.8	3.4 - 4.1	30	0.009	20	7.98	100
4	0.8	3.9 - 4.8	44	0.007	25	4.95	100
6	0.8	4.4 - 5.3	63	0.006	36	3.3	100
10	1	5.7 - 6.8	112	0.0056	50	1.91	100
16	1	6.7 - 8.1	169	0.0046	68	1.21	1000
25	1.2	8.4 - 10.2	251	0.0044	89	0.78	1000
35	1.2	9.7 - 11.7	369	0.0038	110	0.554	1000
50	1.4	11.5 - 13.9	528	0.0037	134	0.386	1000
70	1.4	13.2 - 16.0	756.5	0.0032	171	0.272	1000
95	1.6	15.1 - 18.2	988.1	0.0032	207	0.206	1000
120	1.6	16.7 - 20.2	1205.7	0.0029	239	0.161	1000
150	1.8	18.6 - 22.5	1529.9	0.0029	275	0.129	1000
185	2	20.6 - 24.9	1883.5	0.0029	314	0.106	1000
240	2.2	23.5 - 28.4	2394.5	0.0028	369	0.0801	1000
