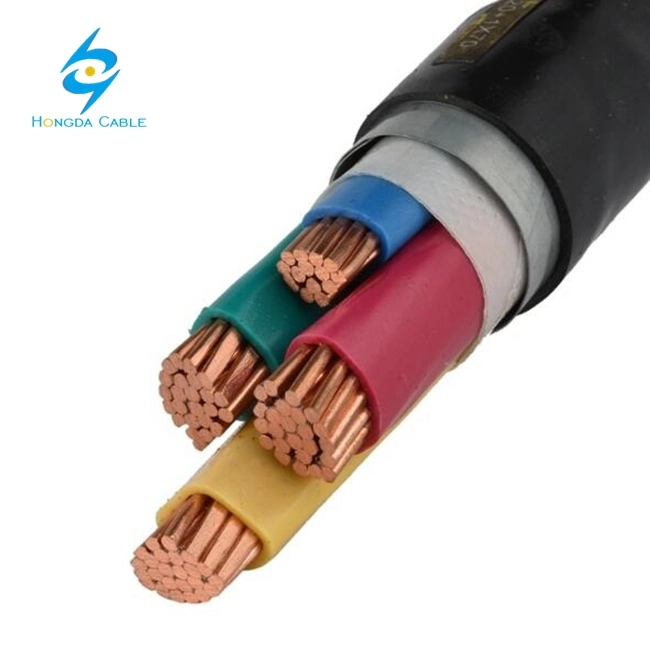

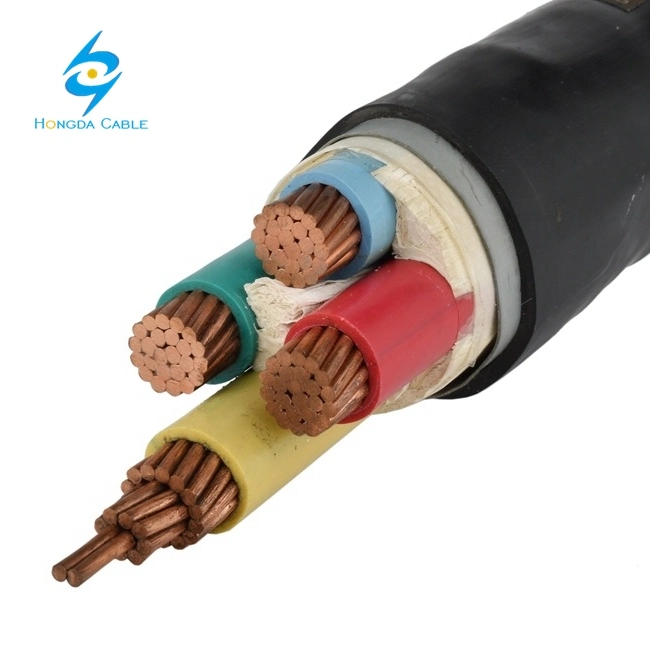

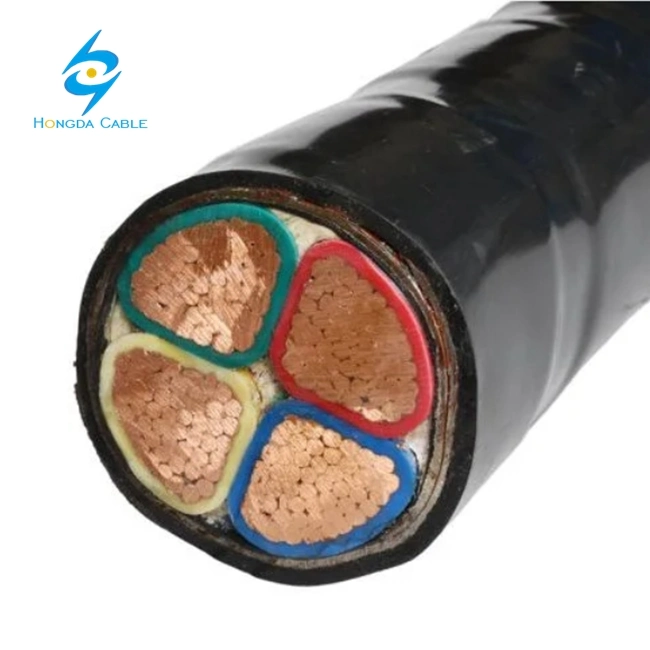

PVC Electrical Wire Copper 3X240 +120 mm2 Cyaby-F Underground Power Cable
PVC Electrical Wire Copper 3X240+120 mm2 Cyaby-F Underground Power Cable1. Cable constructionConductorClass 2 stranded copper conductor according to BS EN 60228InsulationPVCArmouredSteel tapeSheathPVC (Polyvinyl Chloride)2. Construction data of power cables / CYABY-FNumber of cores x nominal cross s......
Send Inquiry
Product Description
PVC Electrical Wire Copper 3X240+120 mm2 Cyaby-F Underground Power Cable
1. Cable construction
2. Construction data of power cables / CYABY-F
Contact information:
Any needs or question ,please contact us ,we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperaton.

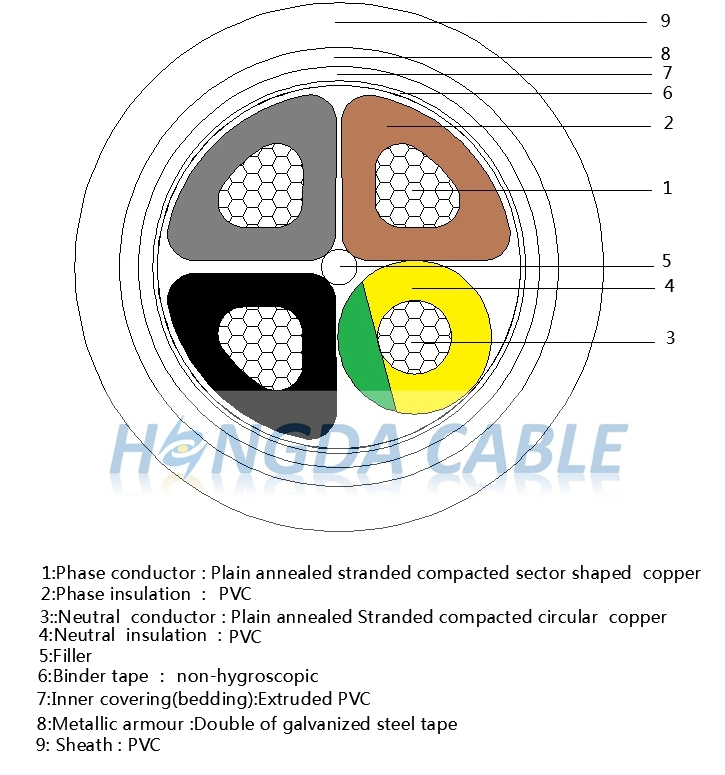

1. Cable construction
| Conductor | Class 2 stranded copper conductor according to BS EN 60228 |
| Insulation | PVC |
| Armoured | Steel tape |
| Sheath | PVC (Polyvinyl Chloride) |
2. Construction data of power cables / CYABY-F
| Number of cores x nominal cross section | Max. conductor resistance | Outer diameter | Total weight | Standard lengths / packing |
| mm2 | ohm/km | mm | mm | m |
| 2x10 RE | 1.830 | 18 | 630 | 500D, 1000D |
| 3x10 RE | 1.830 | 19 | 745 | 500D, 1000D |
| 4x10 RE | 1.830 | 20.2 | 940 | 500D, 1000D |
| 4x10 RM | 1.830 | 20.5 | 975 | 500D, 1000D |
| 5x10 RE | 1.830 | 21.6 | 1090 | 500D, 1000D |
| 5x10 RM | 1.830 | 22 | 1110 | 500D, 1000D |
| 2x16 RE | 1.150 | 19 | 845 | 500D, 1000D |
| 3x16 RM | 1.150 | 21.3 | 985 | 500D, 1000D |
| 4x16 RM | 1.150 | 24 | 1290 | 500D, 1000D |
| 5x16 RM | 1.150 | 26 | 1500 | 500D, 1000D |
| 4x25 RM | 0.727 | 27.5 | 1830 | 500D, 1000D |
| 4x35 SM | 0.524 | 28.7 | 2040 | 500D, 1000D |
| 3x50+25 SM/RM | 0.387/0.727 | 29.2 | 2460 | 500D, 1000D |
| 3x70+35 SM/RM | 0.268/0.524 | 32.9 | 3350 | 500D, 1000D |
| 3x95+50 SM/RM | 0.193/0.387 | 38.3 | 4200 | 500D, 1000D |
| 3x120+70 SM/RM | 0.153/0.268 | 40.8 | 5250 | 500D |
| 3x150+70 SM/RM | 0.124/0.268 | 45.2 | 6290 | 500D |
| 3x185+95 SM/RM | 0.099/0.193 | 50.6 | 7720 | 500D |
| 3x240+120 SM/RM | 0.0754/0.153 | 55.4 | 9830 | 500D |
| 3x300+150 SM/RM | 0.0607/0.124 | 61.1 | 12610 | 500D |
