Steel Wire Armoured Low Voltage Power Cables N2xry & N2xrh Cable

Steel wire armoured low voltage power cables N2XRY & N2XRH Cable

1. Overview

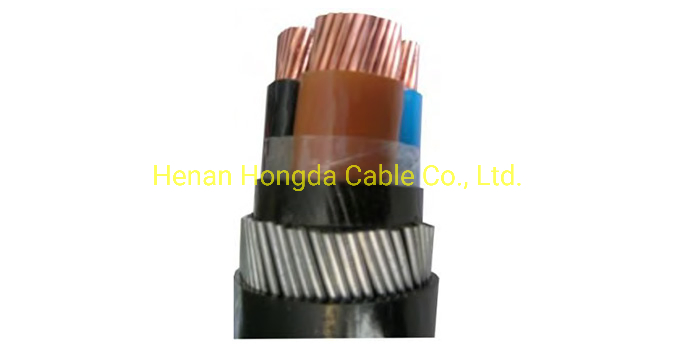

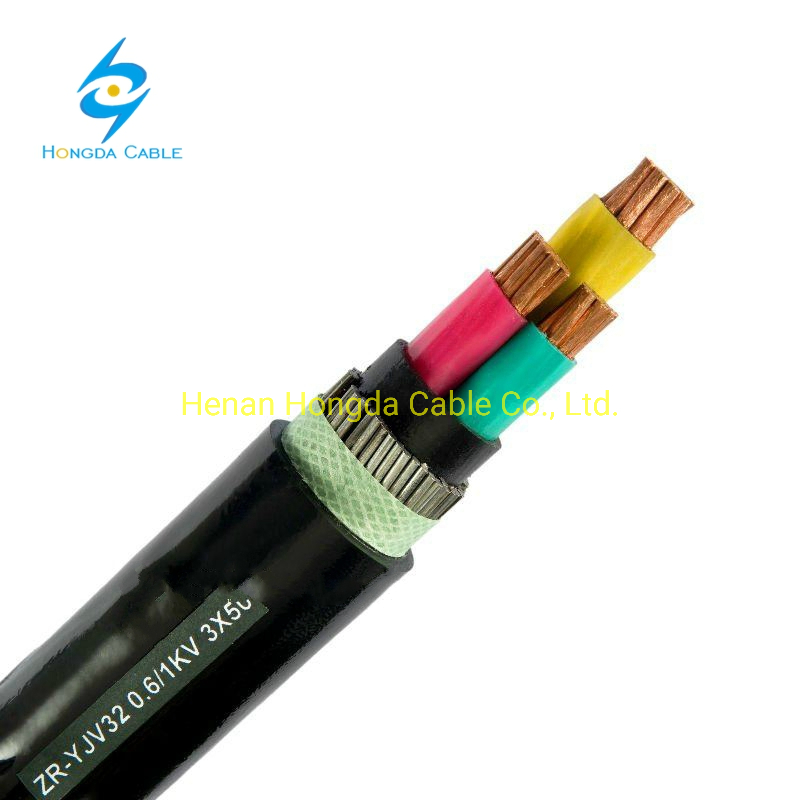

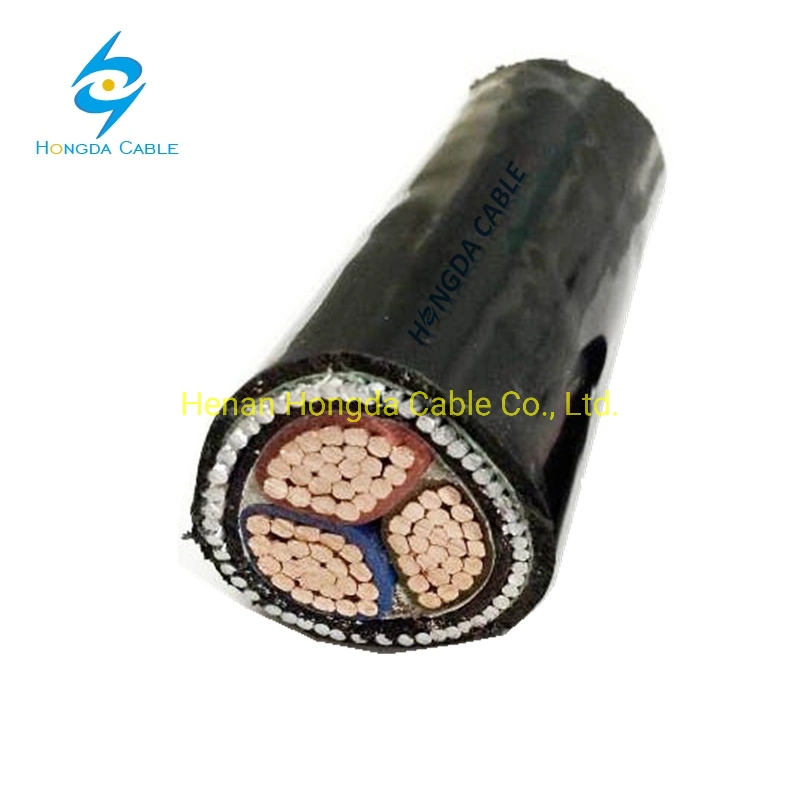

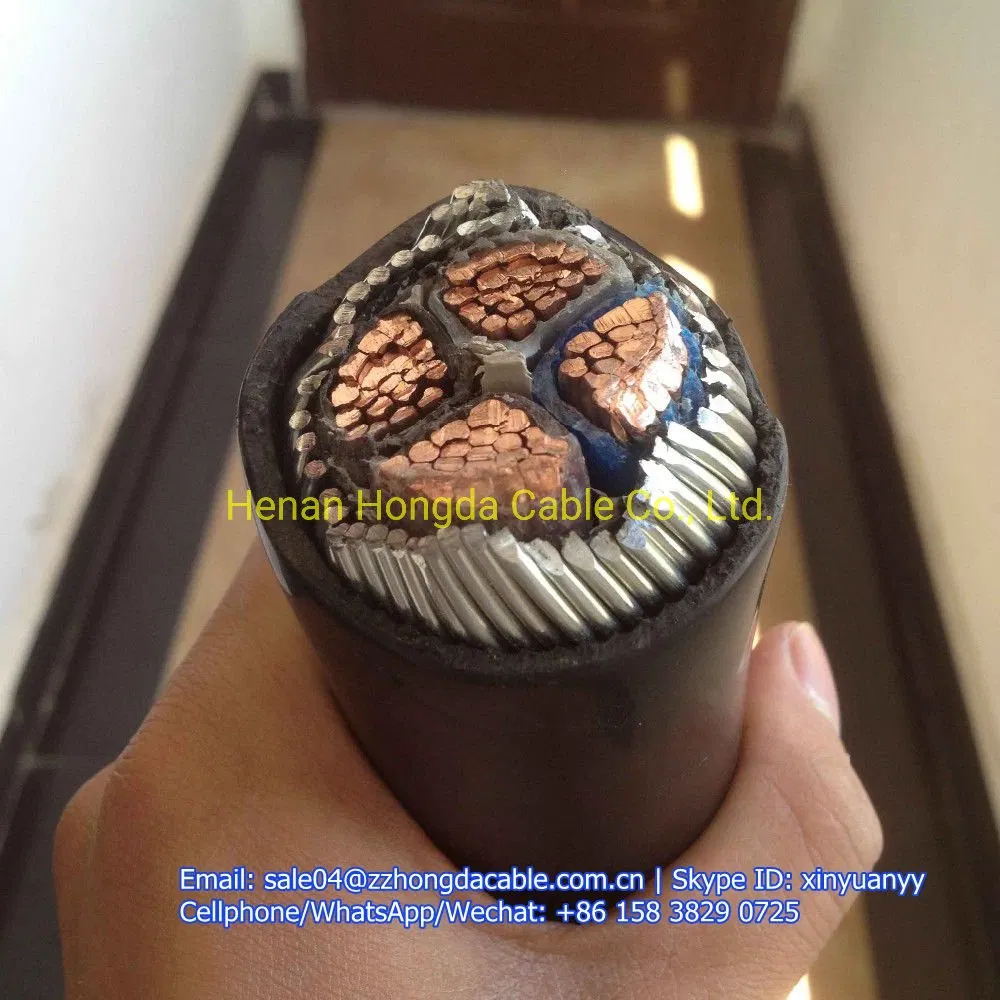

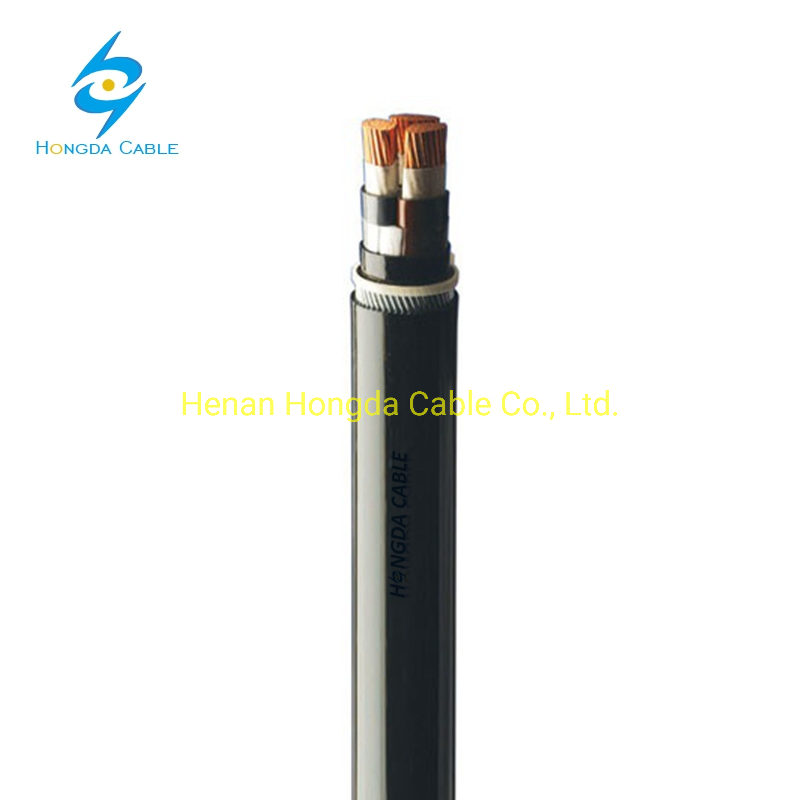

N2XRY cables and N2XRH cables form part of our range of steel wire armoured low voltage power cables we offer in our portfolio. These cables are the copper conductor equivalent of the NA2XRH and NA2XRY cables, delivering a voltage rating of 0.6/1kV (600V/1000V) and a maximum temperature rating of 90^oC. The addition of SWA armouring allows for these cables to be direct buried in the ground without additional protection, protecting them from mechanical stresses and the risk of damage from external forces. The black outer sheath offers UV protection in keeping with their use outdoors.

N2XRY is a PVC insulated and sheathed cable, comparable to the British standard cable BS5467. The N2XRH cable uses Low Smoke Zero Halogen compounds (also known as HFFR - halogen free flame retardant) and is comparable to the BS6724cable. The LSZH cable provides additional protection in the event of a fire, emitting none of the harmful halogen gases such as chlorine gas and emits reduced levels of the dense black smoke compare to PVC sheathed cables. As a result, the N2XRH cable is widely used in public buildings, tall constructions, as well as in refineries, automation plants and data centres - application where smoke emissions and toxic fumes could pose a risk to human health and sensitive equipment in the event of a fire.

2. Cable Types

N2XRH / N2XRY CABLE CODE

3. Construction Table
4. BS 6724 SWA LSZH 0.6/1kV Cable
Dimensions - BS5467 XLPE/LSZH/SWA/LSZH (Copper)
Class 2 Stranded Conductors for Single Core and Multi-Core Cables


4.2 BS 5467 SWA PVC 0.6/1kV Cable
Dimensions - BS5467 XLPE/PVC/SWA/PVC (Copper)
Class 2 Stranded Conductors for Single Core and Multi-Core CablesNotes
1. Where a conductor operates at a temperature exceeding 70ºC it must be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature.
2. Where cables in this table are connected to equipment or accessories designed to operate at a temperature not exceeding 70ºC , the current ratings given in the equivalent table for 70ºC thermoplastic insulated cables must be used.
